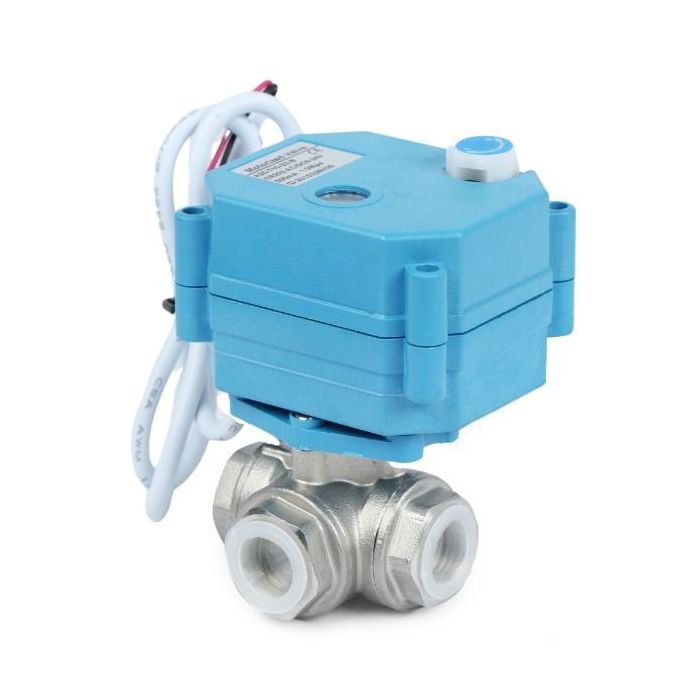

3/8" 3 Way Stainless Steel Motorized Ball Valve, 9-24V AC/DC, L Type, Standard Port, with Manual Function, IP67
$89.98
In stock
SKU
JFMSV10012
Designed for user-friendly and durable performance, this three-way valve offers a variety of voltage configurations, integrated limit switches, two-wire control, and a built-in capacitor return for enhanced current and water conservation. Upon power connection, water flows from the left port, and when the power is disconnected, water flows from the right port. Additionally, the flow direction can be manually adjusted using the hand-wheel for added versatility.
Specifications:
- Model: MSV10012
- Valve Body Material: Stainless Steel
- Port Size: 3/8''
- Voltage: 9-24V AC/DC
- Max. Torque: 3 N m
- Open/Close Time: ~ 5 seconds
- Max. Power: 5 W
- Max. Pressure: 1.0 MPa
- Flow Medium Temp. Range: 0 to 90 ℃
- Ambient Temp. Range: -15 ℃ to 50℃
- Life Time: ≥70000 times
- Actuator Material: PPO
- O-ring: FKM
- Sealing: PTFE
- Manual Override: Yes
- On/Off Indicator: Yes
- IP Rating: IP 67
- Bore Type: Standard Port
- Item Dimension: 3.39*2.48*2.09 in
- Item Weight: 0.84 lb
