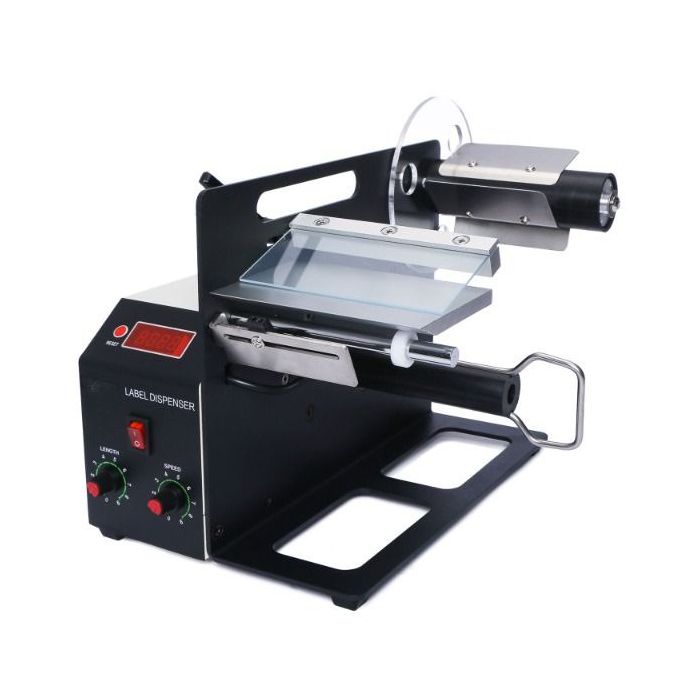

Automatic Label Dispenser for 4-160 MM Width, 4-200 MM Length Translucent and Opaque Labels
Label Dispenser
This label dispenser features 2 core holders that can accommodate label core diameters ranging from 0.39 inches to 3 inches, with a large roll capacity of 9.8 inches label roll diameter.
Equipped with adjustable length and speed knobs, it also includes a Digital 4-Digit LED Display counter to count labels from 0 to 9999. The photoelectric sensor allows for perfect dispensing of both translucent and opaque labels like self-adhesive, barcode, security, packaging, anti-counterfeit, hot stamping stickers, and more.
The dispenser automatically dispenses the next label once the previous one is removed. You can easily set the desired length and operation speed using the adjustable knobs for accuracy and reliability.
The large-diameter core holder can adjust the tension, making it suitable for soft and thin labels that are challenging to peel.
Specifications:
- Model: LD00014-160MM
- Label Width Range: 4 - 160 mm (0.24 to 6.3 inches)
- Label Length Range: 4 - 200 mm (0.16 to 7.87 inches)
- Core Diameter: 10 - 75 mm (0.39 to 3 inches)
- Max. Roll Diameter: 250 mm (9.84 inches)
- Max Dispensing Speed: 60 circles/min
- Power: 18 W
- Voltage: AC110V, 60Hz
- Product Dimension: 280(L) x 260(W) x 210(H) mm (11x 10.2x 8.2 inches)
Manual SKU Label:
| Label Width | Label Length | Core Diameter | Max. OD of Roll | Counter | Translucent Labels | Transparent Labels (thickness 0.03mm) |
|---|---|---|---|---|---|---|
| JFLD00001 | 0.24~5.51 inches | 0.16~7.87 inches | 1~3 inches | 9.84 inches | ✓ | x |
