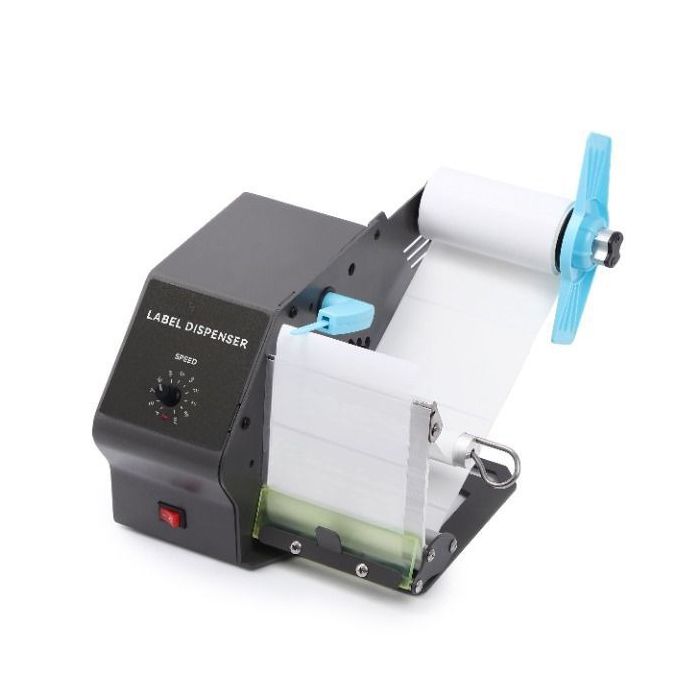

Automatic Label Dispenser for Long Translucent and Opaque Labels Rolls and Fan-fold Labels, 5-120 MM Width, Maximum Roll Diameter 280 MM

Ideal for label core diameters of 1, 1.5 or 3 inches or fan-folded labels. With adjustable speed knobs, up to 10 inches/second. This machine feeds labels upward, using rolls up to 11 inches wide. This upward feeding prevents long labels from getting dirty and keeps each label clean.

Using a mechanical touch probe, this labeling machine works with various types of labels, such as self-adhesive labels, barcode labels, security labels, packaging labels, anti-counterfeit labels, hot stamping stickers, printing patterns, and chrome paper, etc.

Specifications:

• Label Width Range: 0.2”~4.7” (5-120 mm)
• Label Length Range: 0.2”- ∞ (5-∞ mm)
• Core Diameter: 1/1.5/3 inches
• Max. Roll Diameter: 11” (280 mm)
• Max. Label Roll Weight: 8.8 lbs (4 kg)
• Max Dispensing Speed: 10 inches/second
• Voltage: AC 100V ~ 240V, 50Hz/60Hz

Tips:

• The machine won't run until the speed is at least 20.
• Use translucent label material at least 0.05mm thick.
• For perforated labels, make sure the perforations won't tear easily by hand.
• Don't use this machine if your labels have a thick, hard, or fragile release liner.
