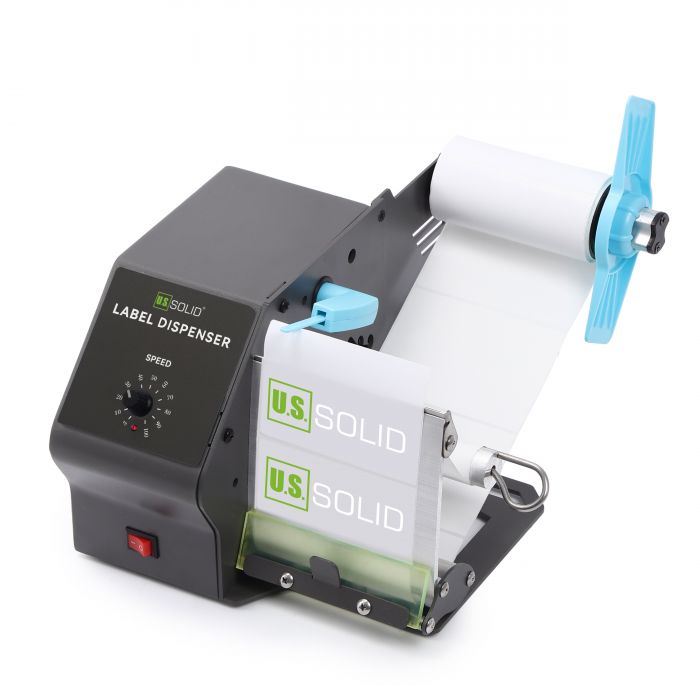

Automatic Label Dispenser for Long Translucent and Opaque Labels Rolls and Fan-fold Labels, 5-180 MM Width, Max. Roll Diameter 280 MM
Ideal for label core diameters of 1, 1.5 or 3 inches or fan-folded labels. With adjustable speed knobs, up to 10 inches/second. This machine feeds labels upward, using rolls up to 11 inches wide. This upward feeding prevents long labels from getting dirty and keeps each label clean.
Using a mechanical touch probe, works with translucent and opaque labels, like self-adhesive labels, barcode labels, security labels, packaging labels, anti-counterfeiting labels, hot stamping stickers, stickers, printing patterns, and chrome paper, etc.
Specifications:
Label Width Range: 0.2”~7” (5-180 mm)
Label Length Range: 0.2”- ∞ (5-∞ mm)
Core Diameter: 1/1.5/3 inches
Max. Roll Diameter: 11” (280 mm)
Max. Label Roll Weight: 8.8 lbs (4 kg)
Max Dispensing Speed: 10 inches/second
Voltage: AC 100V~240V, 50Hz/60Hz
Tips:
- The machine won't run until the speed is at least 20.
- Use translucent label material at least 0.05mm thick.
- For perforated labels, make sure the perforations won't tear easily by hand.
- Don't use this machine if your labels have a thick, hard, or fragile release liner.
SKU | Label Width | Label Length | Core Diameter | Max. OD of Roll | Count | Translucent Labels | Transparent Labels (thickness 0.03mm) |
---|---|---|---|---|---|---|---|
JFLD00001 | 0.24~5.51 inches | 0.16~7.87 inches | 1~3 inches | 9.84 inches | ✓ | x | x |
