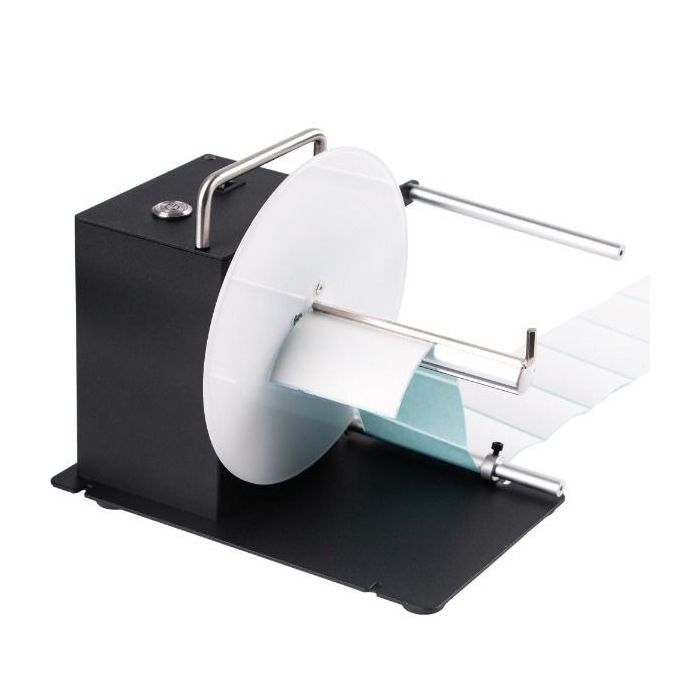

Automatic Label Rewinder with 1"/1.5"/3" Core Holder, 4.72" Width, and Stepless Speed Control

This advanced stepless speed control rewinding machine features an automatic adjustment lifting rod that dynamically sets the rewinding speed according to the printer's feeding speed. The intelligent design ensures seamless rewinding by lowering the lifting rod for fast feeding speeds, which increases the rewinding speed for timely results. Conversely, when the feeding speed is slow and the rod is raised, the rewinding speed slows down to prevent label pulling or damage. The machine automatically stops rewinding when the printer stops feeding and the lifting rod reaches a specific height. Its benefits include no impact, uniform rewinding, and noiseless operation, providing a superior user experience. The bidirectional rewind/unwind capability, compatibility with different roll core sizes (1”, 1.5”, 3”), and the ability to wind labels without a paper tube make it versatile. With features like fully automatic stepless speed regulation, dual flange plate, and two stop levels, this rewinding machine ensures tidy label output.

Specifications:

• Max. Label Width: 4.72 inches (120mm)
• Label Length: No Limits
• Max. OD of Label Roll: Ø 7.87 inches (200 mm)
• Max. Label Roll Weight: 4.4 lbs. (2 kg)
• Core Diameter: 1”(25mm), 1.5”(40mm), 3”(76mm) & exempt core
• Speed: 1~8 inches/second
• Voltage: AC 100V-240V, 50/60Hz
• Net Weight: 4.85 lbs (2.2 kg)
• Product Dimensions: 10.24” (L) x 8.27” (W) x 9.25” (H) (260*210*235mm)

Packing List:

• 1* Label Rewinder Machine
• 1* Power Adapter
• 1* 1” (25mm) Core Holder
• 1* 1.57” (40mm) Core Holder
• 1* 3” (76mm) Core Holder
• 1* L-shaped Rod for Core-Free Rewinding
• 1* Stop Lever
