Dual Function Hot Air Gun and Soldering Iron Rework Station

$85.49
In stock
SKU
JFSS00002

You now may get an integration of two professional tools to help you expand your capabilities and the size of your projects for the cost of one station. This rework station has both the hot air station and the soldering station at your disposal. It will increase the flexibility and versatility of your work dramatically.

This unit features two LED display system with zilog dual core microcomputer processor. It supports the independents or simultaneous use of hot air function and soldering function. The UL listed power supply cords guarantees the safety of using this machine. It will cycle every 20 milliseconds to detect the actual temperature of the soldering iron's heating element, and the temperature can be quickly returned to achieve precise temperature control.

This station has the hot air gun auto hang up function, before starting the machine, put the air gun on the holder and set the required temperature. When the air gun is taken from the holder, the air gun will heat up. When you put the air gun handle back to the holder,the hot air gun will cool to below 212°F and turn off temporarily until picked up again.

The unique no-wind protection function will automatically stop the heating function of the air gun handle when the fan fails for any reason and causes the fan to stop. The prompt tone setting function will make the operation more accurate and convenient.

The soldering iron 10 min auto sleep function can effectively extend the service life of the soldering iron and protecting you, your kids and pets from getting hurt. Whether you're a beginner, a professional, or an electronic fanatic, this station all can help you to complete your work easily.

Instruction Manual

Instruction Video

Model Number: Control Unit Dimensions L150*W136*H100mm±5mm

  • Hot Air Rework Station:
    • Air flow Type: Brushless Fan with Smooth Air Delivery
    • Air Volume: ≤120L/Min
    • Temperature Range: 100℃〜480℃/212℉〜896℉
    • Display: LCD
  • Soldering Station:
    • Temperature Range: 200℃〜480℃/392℉〜896℉
    • Display: LCD
    • Tip to Ground Resistance: <2 Ohms

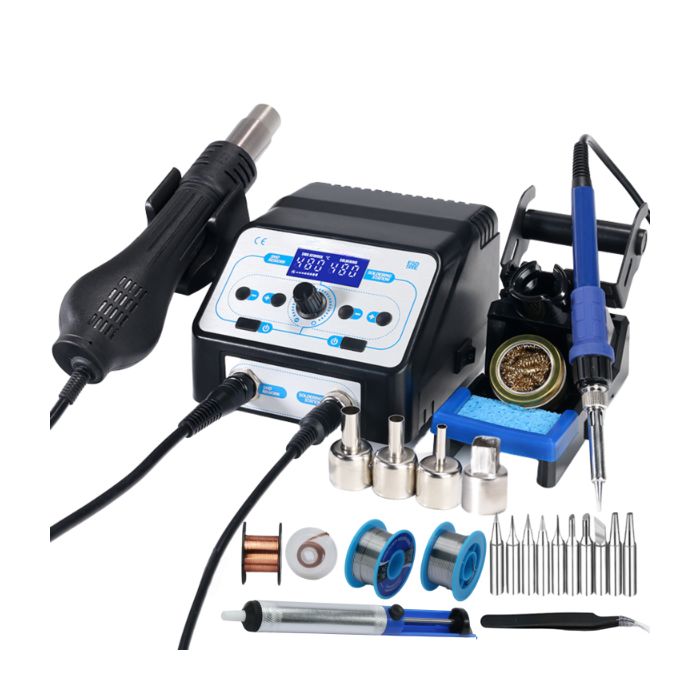

Packing List:

  • Nozzles*4
  • Solder wick*2
  • Soldering Iron Tips*10
  • Tweezers*1
  • Solder wire*1
  • Enameled wire*1
  • Solder sucker*1

Comparing Table:

Model Rated Voltage Range Operating Ambient Temperature Temperature Range
USS-SS00001 110 V~127 V/AC, 60Hz 0℃~40℃/32℉~104℉ 200℃~480℃/392℉~896℉
USS-SS00002 110 V~127 V/AC, 60Hz 0℃~40℃/32℉~104℉ 200℃~480℃/392℉~896℉
USS-SS00003 110 V~127 V/AC, 60Hz 0℃~40℃/32℉~104℉ 200℃~480℃/392℉~896℉
USS-SS00004 110 V~127 V/AC, 60Hz 0℃~40℃/32℉~104℉ 200℃~480℃/392℉~896℉
USS-SS00005 110 V~127 V/AC, 60Hz 0℃~40℃/32℉~104℉ 200℃~480℃/392℉~896℉

`
