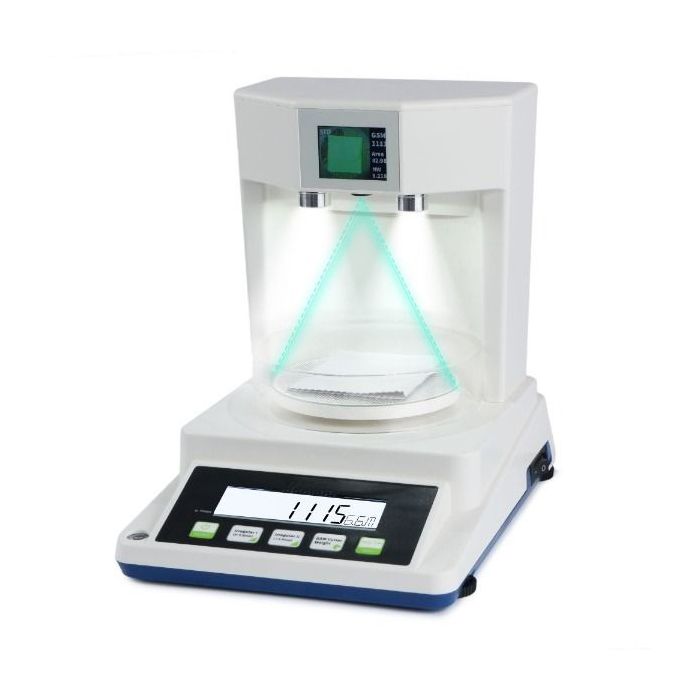

Smart GSM Scale with Camera for Fabric, 200 g x 0.01g, 0.06 mm/pixel

The GSM scales or balances are widely used in industries such as textile, paper, packaging, testing, scientific research, and more. However, conventional GSM scales usually require manual sample cutting into a regular shape, often circular.

The Smart GSM Balance is an innovative solution that eliminates the need for manual sample cutting. This exceptional product features a built-in camera that can easily identify the sample area and calculate the GSM. To operate, the operator simply needs to place the sample on the sample pan.

Compared to traditional methods that may have an error range of 3% to 5%, the Smart GSM Balance offers significantly improved accuracy within just 1%. It not only provides easy operation but also delivers highly precise results.

Specifications:

• Capacity: 200 g
• Readability: 0.01 g
• Camera Accuracy: 0.06 mm/pixel
• Repeatability: ±0.002 g
• Linearity: ±0.003 g
• Stabilization Time: Within 3 seconds
• Pan Size: Φ110 mm
• Gross Weight: 7.15 lbs
• Packaging Dimensions: 14.17*10.43*13.78 inches
• Calibration Weight: 100 g
• Power: 110V, 60Hz, AC

Complete Set Includes:

• 1 x Balance Main Body
• 1 x Weighing Pan
• 1 x Glass Pad
• 1 x Draft Shield
• 1 x Power Adapter
• 1 x Calibration Weight (100g)
• 1 x Instruction Manual
• 1 x Quality Certification

Please Note: The processing and shipping time for this item will be within 14 working days.
