Smart Water Leak Detection System with Motorized Ball Valve and 3 Sensors for Home Protection

Water Leak Detection System

A water leak detection system is a crucial tool in preventing pipeline leaks, which in turn ensures the safety and integrity of the entire pipeline. Drawing on our extensive range of electric ball valves, we have developed our own water leak detection system.

Specifications:

• Model: LDV00008
• Output Power: < 5 W
• Working Pressure: < 1.0 MPa
• Size of Shut-Off Valve: 3/4 inches
• Material of Shut-Off Valve: Stainless Steel
• Medium Temperature: 0-90°C (32-194℉)
• IP Rating: IP 65
• Alarm Startup Time: 1 s
• Valve Close Startup Time: 1 s
• Working Voltage: 5V DC
• Open/Close Time: < 5 s
• Lifetime: > 50000 Times

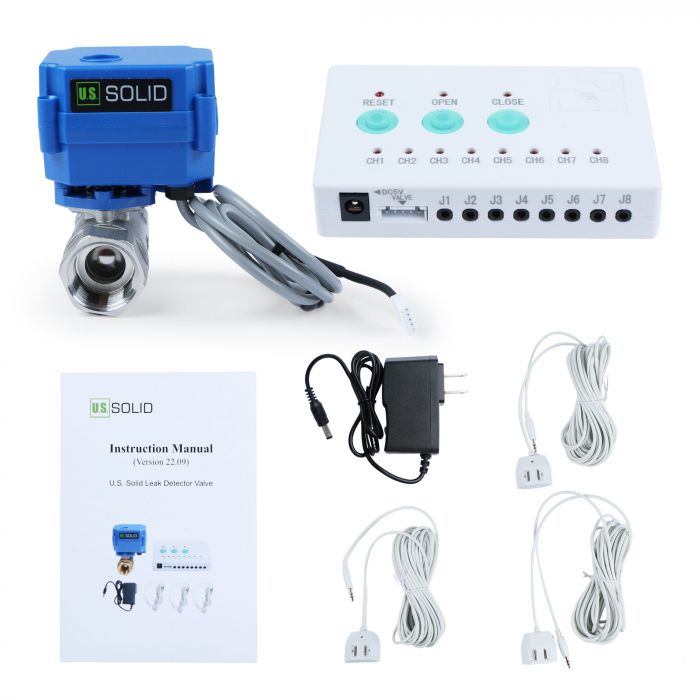

Packing List:

• 1 x Controller
• 1 x Motorized Ball Valve
• 3 x Sensors (6 Meters Line)
• 1 x Power Adapter
• 1 x Manual
