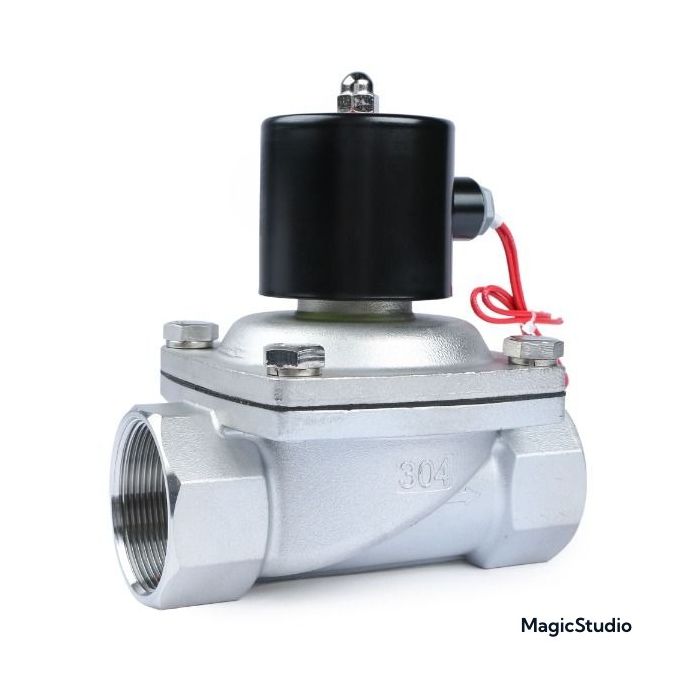

2" Stainless Steel Electric Solenoid Valve, 110V AC, Normally Closed, with Viton Seal
An electric solenoid valve, featuring a stainless steel body and two-way inlet and outlet ports with two inches (2") female threaded connections. Equipped with a heat and oil resistant Viton gasket, this valve is suitable for hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. With an IP65 rating, it can withstand water spray but is recommended to be enclosed in protective housing if permanently installed outdoors. Not suitable for underwater use.
This general purpose valve is popular for do-it-yourself projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems and reverse osmosis systems, or regulating propane gas flow.
Specifications:
- Pipe Size: 2"
- Flow Aperture: 50 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 28 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 48 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 48 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: This solenoid valve is not designed for continuous operation and is not 100% duty cycle. When energized, the valve will get hot. The coil can reach a maximum temperature of about 176°F (80℃), in compliance with national standard JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn. Refer to the Instruction Manual for further details.
