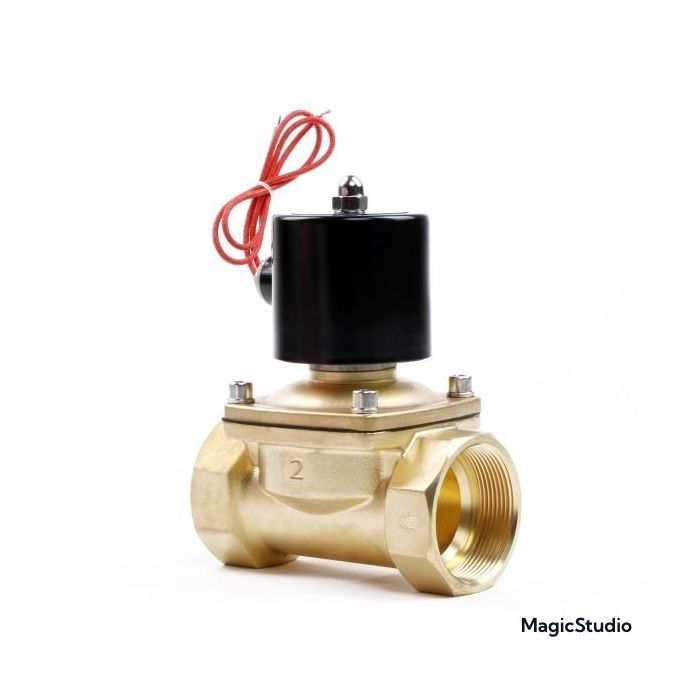

Electric Solenoid Valve- 2" 110V AC Brass Body Normally Closed, VITON SEAL
Electric solenoid valves with normally closed (N/C) operation are constructed with a high-quality brass body, 2" female threaded connections, and a heat and oil resistant Viton gasket. These valves are suitable for use with hot or cold water, gas, air, very low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.
The solenoid valves have an IP65 rating, making them able to withstand spray from water. For outdoor installations, it is recommended to enclose the valves in protective housing to prevent damage. Please note that these valves are not suitable for underwater use.
Customers choose these general purpose valves for do-it-yourself projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or propane gas flow control.
Specifications:
- Pipe Size: 2"
- Flow Aperture: 50 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 28 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 48 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 48 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: These solenoid valves are not designed for continuous operation (not a 100% duty cycle). During normal operation, the coil will reach a maximum temperature of about 176°F (80℃), in compliance with national standards: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Instruction Manual
```
