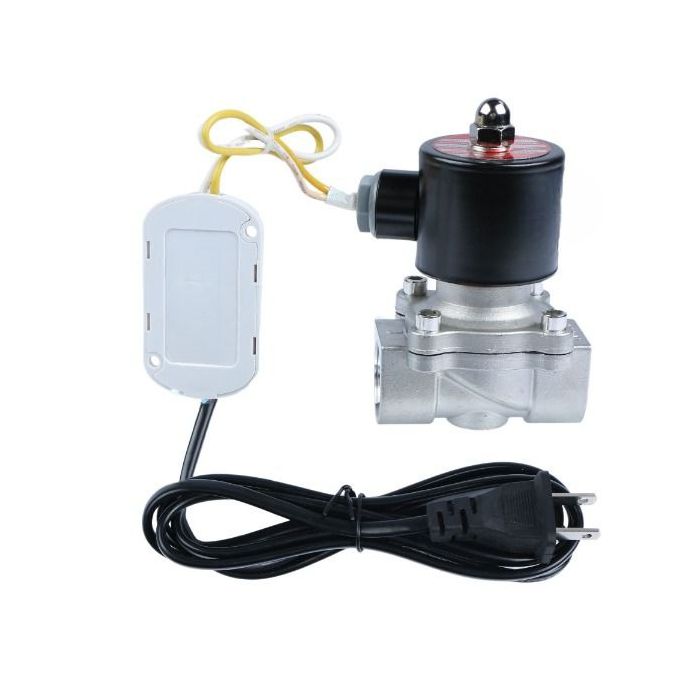

Smart Solenoid Valve

The Smart Solenoid Valve is a state-of-the-art solenoid valve with integrated smart control technology. Easily manage the valve using your mobile device over Wi-Fi, without the need for complex installation. Simply download the app, connect to Wi-Fi, and control the valve remotely with just a few taps. Benefit from unparalleled convenience and user-friendliness compared to traditional valves. Ideal for regulating water, gas, or other fluids with consistent and precise control every time.

Key Features:

• Smart control function allows you to operate the valve from your cellphone after connecting to Wi-Fi, enabling convenient remote operation even when you're away.
• Equipped with a manual switch for added reassurance and peace of mind.
• Schedule function in the app lets you easily program specific opening and closing times for the valve, ensuring seamless operation according to your preferred schedule.
• Timer feature enables you to set a countdown timer for automatic valve opening or closing. Additionally, a loop timer option is available for interval-based alternation, enhancing control and flexibility.

Specifications:

• Model: USS2-00407
• Pipe Size: 3/4"
• Flow Aperture: 20 mm
• Body Material: Stainless Steel
• Control Method: Smart-Control, manual switch
• Gasket / Diaphragm / Seal: VITON
• Operation Type: Direct
• Operation Mode: Normally Closed
• Voltage: AC 110V ± 10%
• Power rating: 21 VA
• Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
• Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
• Flow capacity: 7.6 gallons per minute (GPM) of water at 60 °F with a pressure drop of 1 PSI
• Temperature: 14-248°F (-10-120 °C)

OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). During normal operation while energized, the solenoid valve will become hot. The coil will reach a maximum temperature of about 176°F (80°C), complying fully with national standard JB/T7352-2010. If the coil is energized continuously for over 8 hours, it may burn. If you need to keep it open for an extended period, consider purchasing a Smart Ball Valve.

Instruction Manual Video
