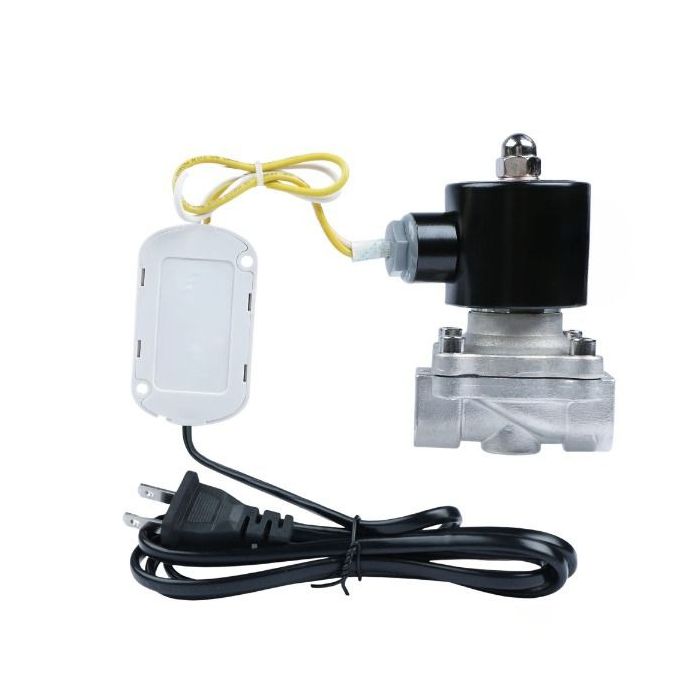

1/2" WiFi-Enabled Stainless Steel Solenoid Valve with Smart Control, 110V AC Voltage, Viton Seal
Smart Solenoid Valve with Wi-Fi Control
The Smart Solenoid Valve is a cutting-edge solenoid valve equipped with built-in smart control technology. Easily manage the valve using your mobile device via Wi-Fi, without the need for complex installation procedures. Just download the corresponding app, connect to Wi-Fi, and remotely open or close the valve with a few simple taps. This valve offers unparalleled convenience and user-friendliness compared to traditional models. Ideal for regulating water, gas, or other fluids with precise and reliable control each time.
Features:
- Smart-control function allowing you to operate the valve from your mobile device. Control it conveniently from anywhere, even when you are away from home.
- Equipped with a manual switch for added peace of mind and assurance.
- Schedule function in the app enables you to set specific times for the valve to open or close, ensuring seamless automation according to your preferred schedule.
- Includes timer feature to automatically open or close the valve. The loop timer option allows for alternating at specific intervals, providing enhanced control and flexibility.
Specifications:
- Model: [Product Model Number]
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Stainless Steel
- Control Method: Smart-Control, manual switch
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Direct
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 21 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 4.8 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Temperature: 14-248℉ (-10-120 ℃)
Important Note: This solenoid valve is not designed for continuous operation (not a 100% duty cycle). When energized, under normal conditions, the coil may get hot, reaching a maximum temperature of around 176°F (80℃). It complies fully with national standards. If the coil is energized continuously for more than 8 hours, it may burn. For extended periods of operation, consider purchasing a Smart Ball Valve.
Instruction Manual Video
