Battery Spot Welder 11.6 KW Capacitor Energy Storage Pulse Welding Machine for Cellphone Battery, 18650, 14500 Lithium Battery Pack Building
Product Features

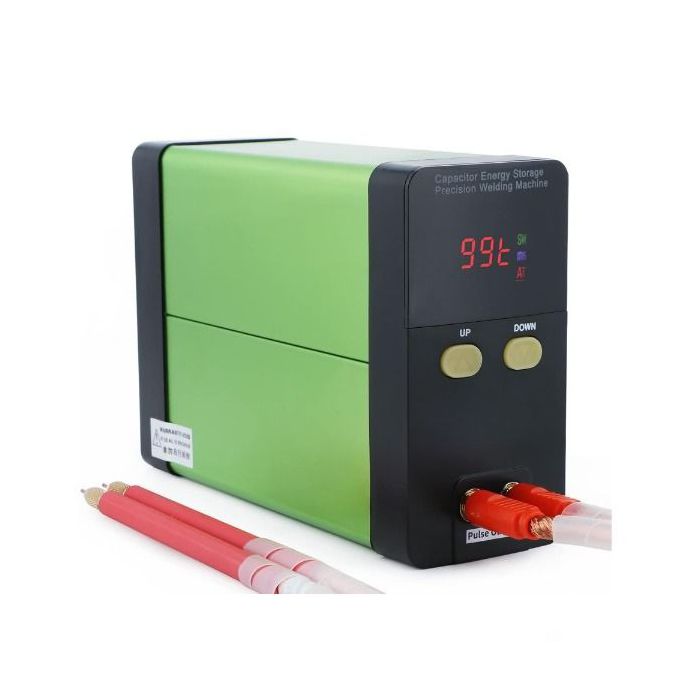

The newly designed battery spot welder is equipped with two super capacitors for energy storage and power supply for pulse welding. Compared to a traditional AC spot welder, it does not interfere with the electric circuit, which means no more tripping problems. The machine’s super energy-gathered pulse technology combines with a max welding power to provide a reliable welding effect. The welder’s small size and light weight make it more portable compared to a bulky traditional spot welder. The aluminum alloy housing also provides a more powerful and reliable machine. Equipped with the 70A separated-style spot welding pen and automatic welding mode, this machine allows you to work easily and efficiently. The low power consumption technology enables you to use the machine efficiently for 12 hours with no heating problems. The pulse welding power can be seen on the LED screen and set via two adjusting buttons(0-99 range). 0.3mm nickel plated and 0.25mm pure nickel can be easily welded with the max energy.
Product Parameters
- Model: USS-BSW00004
- Maximum Welding Energy: 60 J
- Power Adapter Input: AC 100-240 V 50/60 Hz
- Pulse Time: 0.05-5 ms
- Power Adapter Output: 15 V 1.3 A
- Welding Power Adjustment Range: 0-99 t (0.05ms/t)
- Machine Input: DC 15 V 1.3 A
- Welding Mode: AT(automatic welding mode)
- Machine Charging Time: 20-30 minutes
- Pulse Delayed Time: 20-50 ms
- Output Welding Voltage: 5-5.8 V
- Welding Thickness of Nickel: 0.05-0.3 mm
- Output Welding Current: 500-2000 A(pulse)
- Package Size: 8.9x7.5x6.7 inches
- Maximum Welding Power: 11.6 KW
- Package Weight: 4.4 lbs
Package List
- Main Machine x 1
- Power Adapter x 1
- 70A Separated-style Welding Pen x 1
- Square-shape Butt Welding Head for 70A x 1
- Replacing Welding Pins for 70A x 1
- Pair Little Spanner x 1
- Six-cells Battery Clamp x 1
- Nickel Strips x 100pcs
