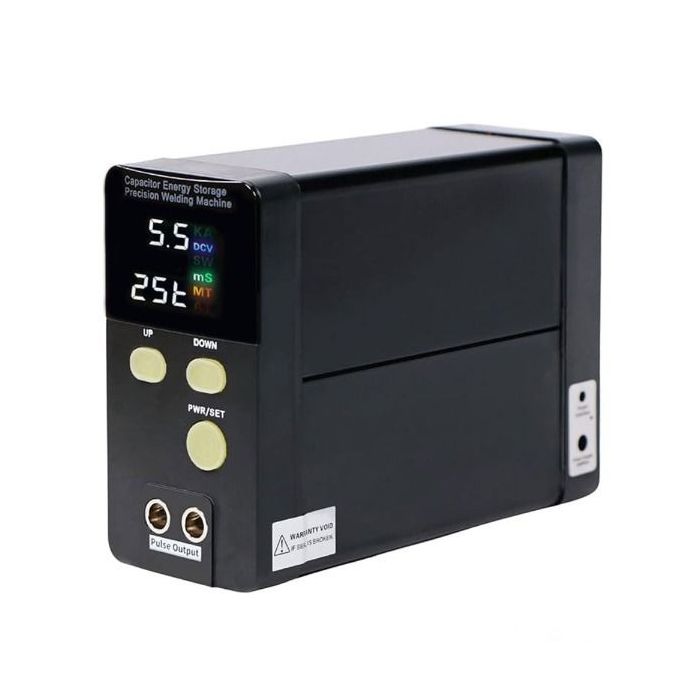

Battery Spot Welder 12 KW Capacitor Energy Storage Pulse Welding Machine for 18650, 14500 Lithium Battery Pack Building
Product Features
The newly designed battery spot welder is equipped with two super capacitors for energy storage and power supply for pulse welding. Compared to a traditional AC spot welder, it does not interfere with the electric circuit, which means no more tripping problems. The machine’s super energy-gathered pulse technology combines with a max welding power to provide a reliable welding effect. The welder’s small size and light weight make it more portable compared to a bulky traditional spot welder. The aluminum alloy housing also provides a more powerful and reliable machine. Equipped with the intelligent spot welding pen/handle-push welding arm and two welding modes, this machine allows you to work easily and efficiently. The low power consumption technology enables you to use the machine efficiently for 12 hours with no heating problems. The actual pulse time grade, capacitor voltage, and welding current are displayed on the LED screen. And you can set the welding power grade at '0-99t' level conveniently via two adjusting buttons. Nickel plated and pure nickel can be easily welded with the max energy.
Instruction Manual
Product Parameters
| Model | Maximum Welding Energy | Power Adapter Input | Pulse Time | Power Adapter Output | Welding Power Adjustment Range | Machine Input | Welding Mode | Machine Charging Time | Pulse Delayed Time | Output Welding Voltage | Welding Thickness of Nickel | Output Welding Current | Package Size | Maximum Welding Power | Package Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| USS-BSW00006 | 238 J | AC 100-240 V 50/60 Hz | 0.2-20 ms | 15 V 2-3 A | 0-99 t (0.2ms/t) | DC 15 V 2-3 A | AT/MT | 10-20 minutes | 20-50 ms | 5-6 V | 0.05-0.4 mm | 500-2000 A(pulse) | 8.9x7.5x6.7 inches | 12 KW | 7.6 lbs |
Package List
- Main Machine x 1
- Power Adapter x 1
- Handle-push Welding Arm x 1
- Intelligent Welding Pen x 1
- Foot Pedal Switch x 1
- Little Spanner x 1
- Replacing Welding Pins for Handle-push Welding Arm x 2 pairs
- Replacing Welding Pins for Intelligent Welding Pen x 1 pair
