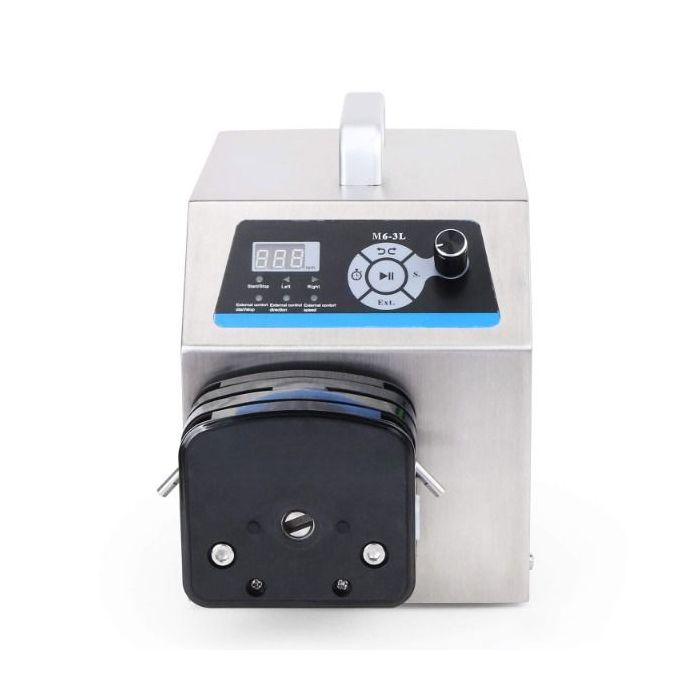

Industrial Tubing Peristaltic Pump M6-3L 0.211-3600 mL/min

$929.99
In stock
SKU
JFPP00024

Specifications:

  • Model: M6-3L
  • Flow rate range: 0.211 - 3600 mL/min
  • Speed range: 0.5 - 600 rpm
  • Speed resolution: 0.1 rpm (when 0-100rpm); 1 rpm (when 100-600rpm)
  • Display: LED
  • Control method: pure import button and digital knob
  • Button life: 300,000 times
  • External control speed signal: 0-5 V(standard) 0-10 V, 4-20 mA(optional)
  • Communication interface: RS232 (standard) RS485 (optional), with MODBUS protocol(RTU mode)
  • Power consumption: <80 W
  • Operating condition: temperature 0 to 40 ℃
  • Power supply: 110V
  • Relative humidity: < 80 %
  • Drive dimension: 230 x 152 x 199 mm
  • Drive weight: 5.02 kg
  • IP rate: IP31
  • Housing material: stainless steel
  • Motor type: servo motor

Packing List:

  • 1 x Drive (N6-3L)
  • 1 x Pump Head (DZ25-3L)
  • 1 x 15# Tubing (2 m)
  • 1 x 24# Tubing (2 m)
  • 1 x 35# Tubing (2 m)
  • 1 x 36# Tubing (2 m)
  • 1 x Power Cable
  • 2 x English Manual
  • Manual MODBUS Protocol
