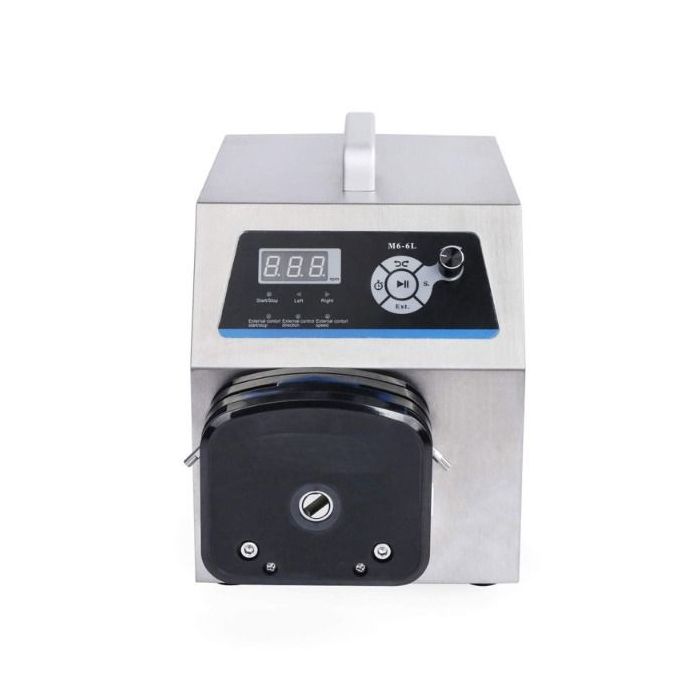

Industrial Tubing Pump with Peristaltic Design M6-6L 0.3-6000 mL/min

Product Specifications

• Model: M6-6L
• Flow rate range: 0.3~6000 mL/min per channel
• Flow rate accuracy: ＜ ±0.5%
• Speed range: 0.5-600 rpm
• Speed resolution: 0.1 rpm (when 0-100 rpm); 1 rpm (when 100-600 rpm)
• Display mode: LED
• Manipulation mode: pure import button
• Button life: 300,000 times
• Speed regulation mode: digital knob
• Motor type: servo motor
• Outlet pressure: 0.3 MPa
• External control speed regulation signal: 0-5V (standard), 0-10V, 4-20mA (optional)
• Start-stop, reversal signal: passive switching signal (foot pedal switch); active switching signal (24V)
• Power supply: AC 110V±10% 50Hz/60Hz
• Relative humidity: ＜ 80%
• Power consumption: ＜ 180W
• Ambient temperature: 0-40℃
• IP code: IP31
• Drive size: 11.50x7.60x10.79 inch [292x192x274 mm]
• Drive weight: 17.31 lb [7.85 kg]
• Package dimensions: 18.11x11.81x14.17 inches [460x300x360 mm]
• Unit weight: 27.23 lb [12.35 kg]

Packing List

• 1 x Drive (M6-6L)
• 1 x Pump Head (DZ25-6L)
• 1 x 15# Tubing (2 m)
• 1 x 24# Tubing (2 m)
• 1 x 35# Tubing (2 m)
• 1 x 36# Tubing (2 m)
• 1 x Power Cable
• 1 x English Manual for M6-6L Drive
• 1 x English Manual for DZ25-6L Pump Head Manual MODBUS Protocal
