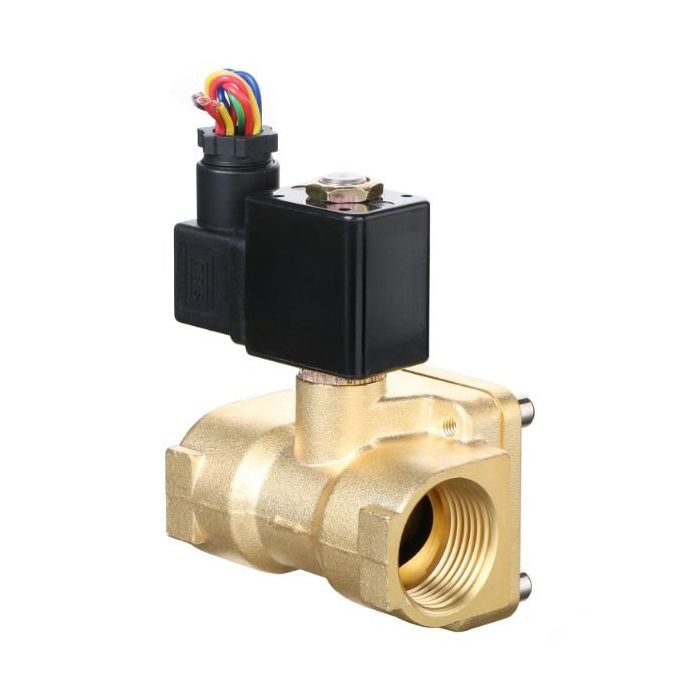

1" Electric Solenoid Valve - Brass Body, Normally Closed, VITON SEAL, 12V DC 230PSI

$46.99
In stock
SKU
JFSV00029

Electric high pressure solenoid valve with a normally closed (N/C) design, featuring a durable brass body, one inch (1") female threaded (NPT) connections, and a heat and oil resistant Viton gasket. Ideal for use with hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.

The solenoid valves are IP65 rated, making them resistant to water spray. For outdoor installations, it is recommended to enclose the valves in protective housing. Not suitable for underwater use.

This general purpose valve is chosen by customers for various applications including do-it-yourself projects, moderate temperature environments, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or regulating propane gas flow.

Specifications

  • Model: USS2-00029
  • Pipe Size: 1"
  • Flow aperture: 25 mm
  • Body Material: Brass
  • Gasket / Diaphragm / Seal: Viton
  • Operation Type: Pilot-Operated Valve
  • Operation Mode: Normally Closed
  • Voltage: 12V DC ± 10%
  • Power rating: 12 W
  • Suitable medium: Air, water, oil, Diesel fuel, kerosene etc.
  • Operational pressure range: 10 to 232 PSI (0.1 to 1.6 MPa)
  • Flow capacity: 7.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
  • Flow value: 7.6 Cv
  • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)

OVERHEATING WARNING: This solenoid valve is not designed for continuous operation (not a 100% duty cycle). Under normal conditions, the coil can reach a temperature of about 176°F (80°C). Continuous energization for more than 8 hours may cause the coil to burn.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
