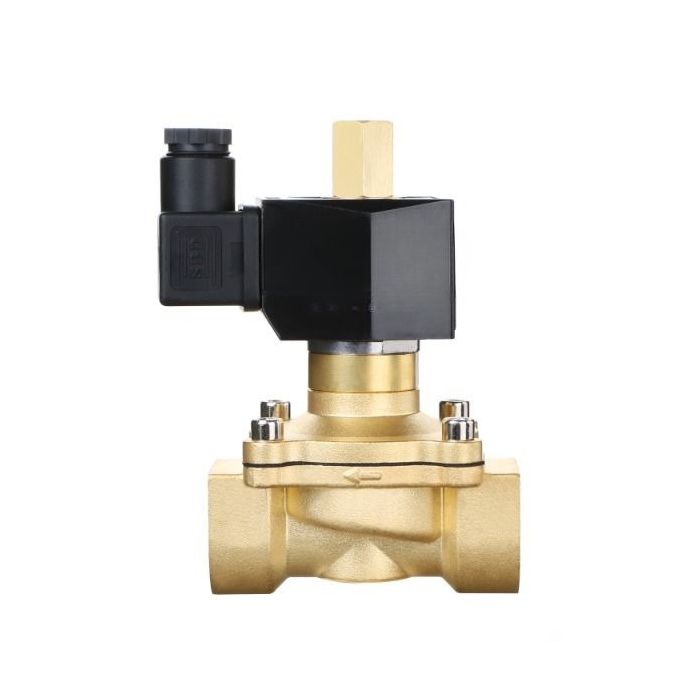

Electric Solenoid Valve - 1" 110V AC Brass Body Normally Open, VITON SEAL
Our normally open (N/O) electric high pressure solenoid valve features a durable brass body with one inch (1") female threaded (NPT) connections and a heat and oil resistant Viton gasket. It is suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.
The solenoid valves have an IP65 rating, making them capable of withstanding water spray. It is recommended to enclose the valves in protective housing if permanently installed outdoors, as they are not suitable for use underwater.
Customers often select this general purpose valve for various applications including do-it-yourself projects, moderate temperature environments, handling harsh chemicals, controlling flow in irrigation systems, reverse osmosis systems, and managing the flow of propane gas.
Specifications:
- Model: 2-00027
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Open
- Voltage: 110V AC ± 10%
- Power Rating: 22 VA
- Suitable Medium: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational Pressure Range: 0 to 101 PSI (for Air, Water); 0 to 72 PSI (for Oil)
- Flow Capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 12 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). The solenoid valve will get hot while energized under normal conditions, with the coil reaching a maximum temperature of about 176°F (80℃), compliant with national standards. Continuous energization for more than 8 hours may cause the coil to burn.
