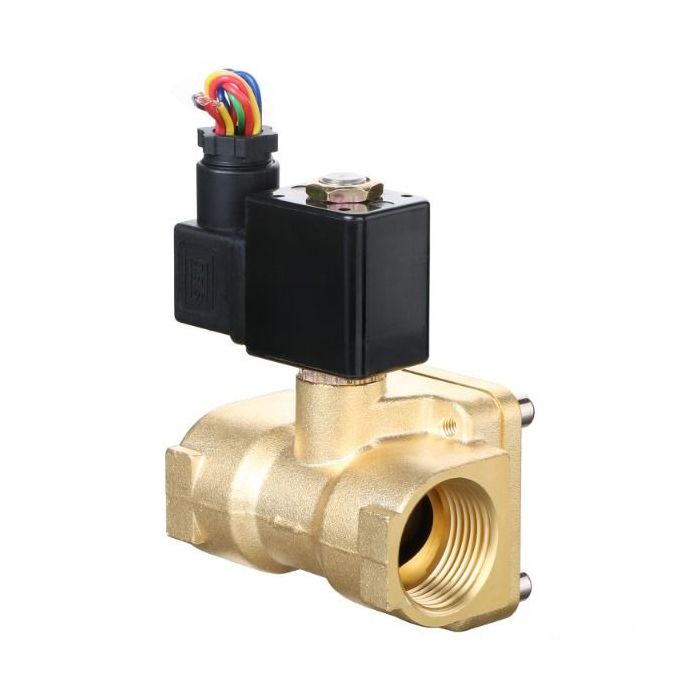

1" Electric Solenoid Valve- AC 110V Brass Body Normally Closed, VITON SEAL
Electric high pressure solenoid valve with normally closed (N/C) operation, features a sturdy brass body, 1" female threaded (NPT) connections, and a durable Viton gasket resistant to heat and oil. Suitable for hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.
This solenoid valve is IP65 rated, able to withstand water spray. However, for permanent outdoor installation, it is advisable to protect the valves within a housing. Not suitable for underwater use.
Customers select this versatile valve for a range of applications including DIY projects, moderate temperature environments, harsh chemicals, irrigation system flow control, reverse osmosis systems, and propane gas flow regulation.
Specifications:
- Model: USS2-00030
- Pipe Size: 1"
- Flow aperture: 20 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Pilot-Operated Valve
- Operation Mode: Normally Closed
- Voltage: 110V AC ± 10%
- Power rating: 10 VA
- Suitable medium: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: 10 to 232 PSI (0.1 to 1.6 MPa)
- Flow capacity: 7.6 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 7.6 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature, Maximum: 248°F (120°C)
OVERHEATING WARNING: Not suitable for continuous operation (not a 100% duty cycle). During normal operation, the solenoid valve will generate heat. The coil can reach a maximum temperature of about 176°F (80°C), complying with national standard: JB/T7352-2010. Continuous energization exceeding 8 hours may cause the coil to burn.
