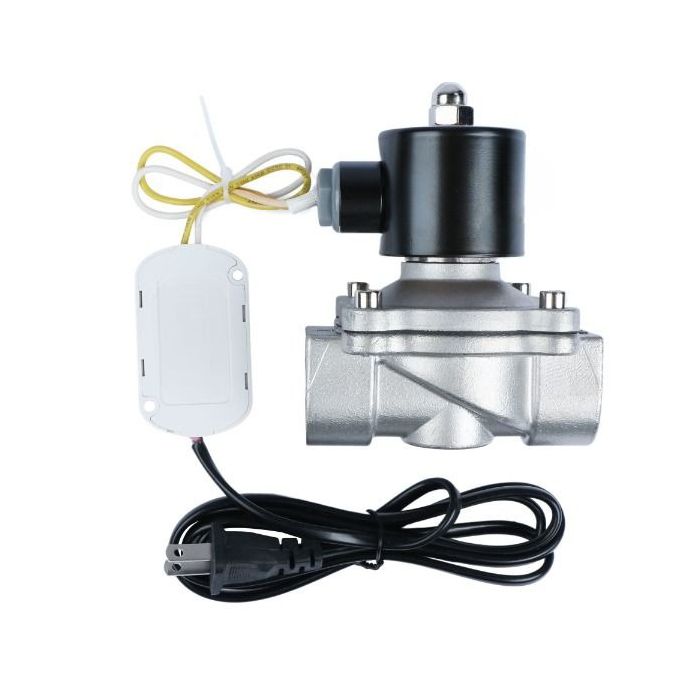

1” Intelligent Solenoid Valve - WiFi Remote-Control Stainless Steel Valve, 110V AC, Viton Sealing

The Smart Solenoid Valve is an advanced solenoid valve featuring built-in smart control technology. Easily manage the valve using your mobile device over Wi-Fi, without the need for complex installation. Simply download the app, connect to Wi-Fi, and conveniently open or close the valve remotely with a few taps. Experience unparalleled convenience and user-friendliness compared to traditional valves. Ideal for regulating water, gas, or other fluids with dependable and precise control every time.

Features:

• The smart solenoid valve provides smart-control functionality, enabling remote operation from your smartphone. Once connected to Wi-Fi, you can conveniently control the valve remotely, even when away from home. Enjoy seamless control from anywhere, at any time.
• In addition to its smart control capabilities, the solenoid valve is furnished with a manual switch for added security and peace of mind.
• Utilize the schedule function in the app to easily schedule specific times for the valve to open or close. This automation feature ensures that the valve functions according to your desired timetable, delivering seamless control.
• The smart solenoid valve also features a timer function. Set a countdown timer to automatically open or close the valve. Moreover, the loop timer option allows the valve to alternate at set intervals. This versatile timer functionality offers enhanced control and flexibility for operating your solenoid valve.

Specifications:

• Model: (Model Number)
• Pipe Size: 1"
• Flow Aperture: 25 mm
• Body Material: Stainless Steel
• Control Method: Smart-Control, manual switch
• Gasket / Diaphragm / Seal: VITON
• Operation Type: Direct
• Operation Mode: Normally Closed
• Voltage: AC 110V ± 10%
• Power Rating: 21 VA
• Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
• Operational Pressure Range:
  • Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
  • Oil: 0-5 Bar (0 to 72 PSI)
• Flow Capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
• Temperature: 14-248℉ (-10-120 ℃)
• OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). While energized under normal conditions, the solenoid valve will become hot. The coil will reach a maximum temperature of about 176°F (80℃), complying fully with the national standard: JB/T7352-2010. If energized continuously for over 8 hours, the coil may burn. For extended open operation, consider acquiring a Smart Ball Valve.

Instruction Manual Video
