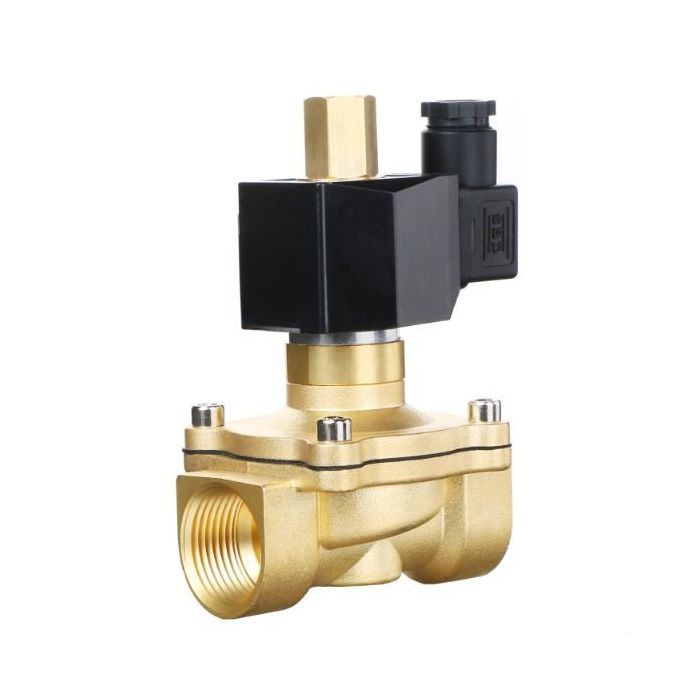

Electric Solenoid Valve- 1" 12V DC Brass Body Normally Open with VITON Seal
Our high pressure solenoid valve features a durable brass body, one inch (1") female threaded (NPT) connections, and a heat and oil resistant Viton gasket. It is designed for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.
The solenoid valves have an IP65 rating, making them able to withstand water spray. For outdoor installations, it is recommended to enclose the valves in protective housing. Please note that they are not suitable for underwater use.
Customers choose this valve for various applications including do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis systems, or to regulate the flow of propane gas.
Specifications
- Model: USS2-00028
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Open
- Voltage: 12V DC ± 10%
- Power Rating: 20 W
- Suitable Medium: Air, water, oil, diesel fuel, kerosene, etc.
- Operational Pressure Range: 0 to 101 PSI (for air, water); 0 to 72 PSI (for oil)
- Flow Capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 12 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: This solenoid valve is not designed for continuous operation (not a 100% duty cycle). During normal operation, the valve will heat up, with the coil reaching a maximum temperature of about 176°F (80℃), in compliance with national standards. Continuous operation for over 8 hours may cause the coil to burn.
