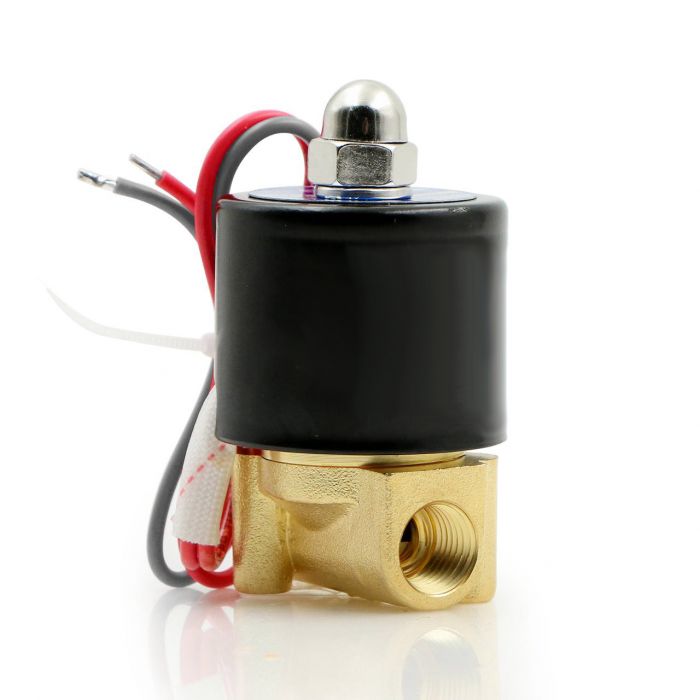

Electric Solenoid Valve- 1/4" 24V AC Brass Body Normally Closed, VITON SEAL
Our normally closed (N/C) electric solenoid valve is designed with a durable brass body, two-way inlet and outlet ports with 1/4" female threaded connections, and Viton seals that are resistant to heat and oil. This valve is suitable for a variety of applications, including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
The solenoid valves are rated IP65, making them able to withstand water spray. However, if installed outdoors permanently, it is recommended to enclose them in protective housing. Please note that these valves are not intended for underwater use. Customers commonly choose this general-purpose valve for DIY projects, moderate temperature applications, water exchange in aquariums, air horns, or removing moisture from air tanks.
Specifications:
- Pipe Size: 1/4"
- Flow Aperture: 2.5 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power rating: 15 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 0.23 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow value: 0.23 Cv
- Temperature, Minimum: -10°C
- Temperature Maximum: 120°C
**OVERHEATING WARNING**: This valve is not meant for continuous operation (not 100% duty cycle). When energized, the solenoid valve will become hot. The coil can reach a maximum temperature of about 176°F (80°C), which complies with national standards. Continuous energization for over 8 hours may cause the coil to burn. **WARNING**: This product contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
