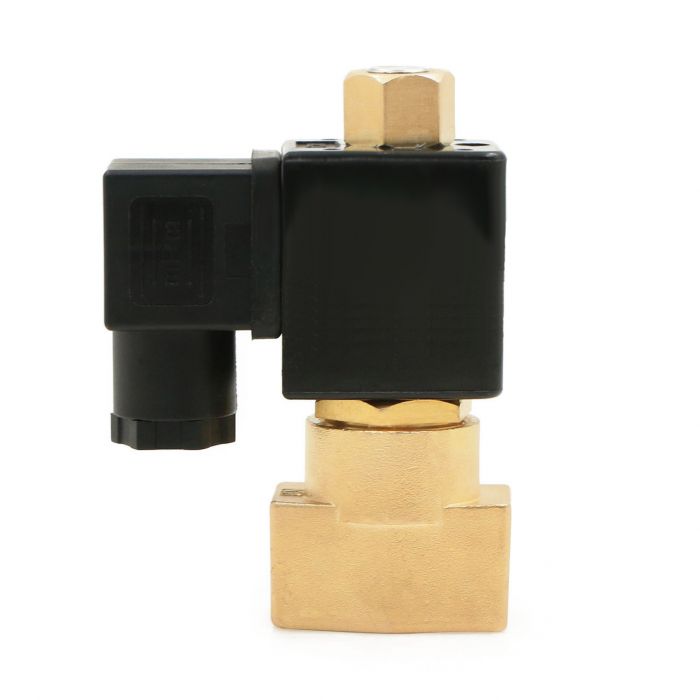

Electric Solenoid Valve - 1/4" 24V AC Brass Solenoid Valve Normally Open with NBR Seal
Our normally open (N/O) electric solenoid valve features a sturdy brass body, 1/4" female threaded (NPT) connections, and nitrile rubber (NBR) seals. It is designed for compatibility with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst), and oils. The solenoid valves are rated IP65, making them resistant to water spray. We recommend enclosing the valves in protective housing if they are permanently installed outdoors. Please note that these valves are not suitable for underwater use.
Customers commonly choose this general purpose valve for a variety of applications such as do-it-yourself projects, moderate temperature uses, water exchange for aquariums, air horns, or bleeding moisture from an air tank.
Specifications:
- Pipe Size: 1/4"
- Flow Aperture: 2.0 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: NBR
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Open
- Voltage: AC 24V ± 10%
- Power rating: 9.8 VA
- Suitable Media: Air, water, diesel oil, kerosene, etc.
- Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 0.14 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 0.14 Cv
- Temperature, Minimum: 23 degrees Fahrenheit (-5 degrees Celsius)
- Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
Overheating Warning: This solenoid valve is not designed for continuous operation (not a 100% duty cycle). It may get hot while energized under normal operating conditions, with the coil reaching a maximum temperature of about 176°F (80°C). This fully complies with national standard: JB/T7352-2010. Continuous energization for over 8 hours may cause the coil to burn.
Chemical Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
