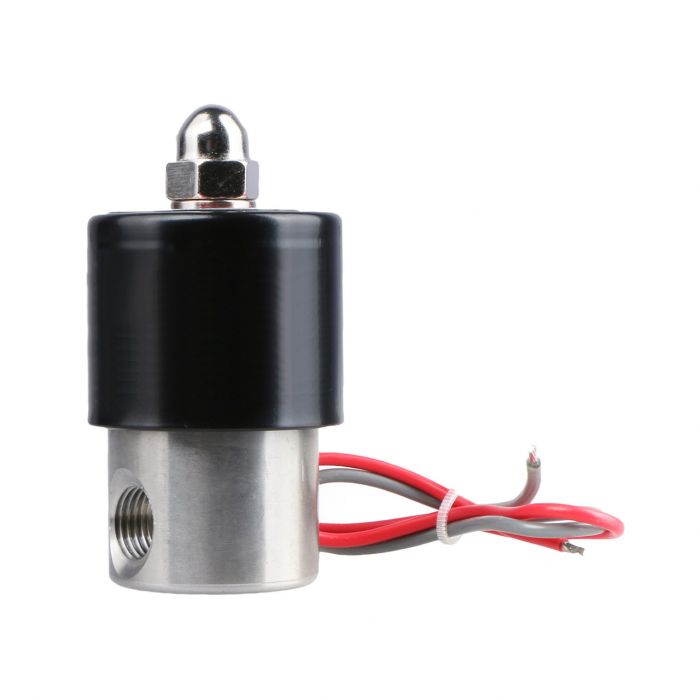

Electric Solenoid Valve - 1/4" 24V AC Stainless Steel Body Valve Normally Closed with VITON SEAL
Our normally closed (N/C) electric solenoid valve is built with a durable stainless steel body, featuring two-way inlet and outlet ports with 1/4" female threaded (NPT) connections and Viton seals that are resistant to heat and oil. This valve is suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids (<20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
The solenoid valves are rated IP65, making them able to withstand water spray. For outdoor permanent installations, we recommend enclosing the valves in protective housing. Please note that they are not suitable for underwater use.
Customers commonly select this general purpose valve for do-it-yourself projects, moderate temperature applications, water exchange in aquariums, air horns, or extracting moisture from air tanks.
Specifications:
- Pipe Size: 1/4"
- Flow Aperture: 2.5mm
- Body Material: Stainless Steel
- Gasket/Diaphragm/Seal: Viton
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power Rating: 15.5 VA
- Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
- Operational Pressure Range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow Capacity: 0.23 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 0.23 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature, Maximum: 248°F (120°C)
Overheating Warning: This valve is not designed for continuous operation and does not have a 100% duty cycle. When energized under normal conditions, the solenoid valve will become hot. The coil reaches a maximum temperature of about 176°F (80°C), complying with national standard JB/T7352-2010. Continuous energization for over 8 hours may cause coil burnout.
