Electric Solenoid Valve- 1/8" 12V DC Brass Body Normally Closed, NBR SEAL

$13.99
In stock
SKU
JFSV00015
Product Description

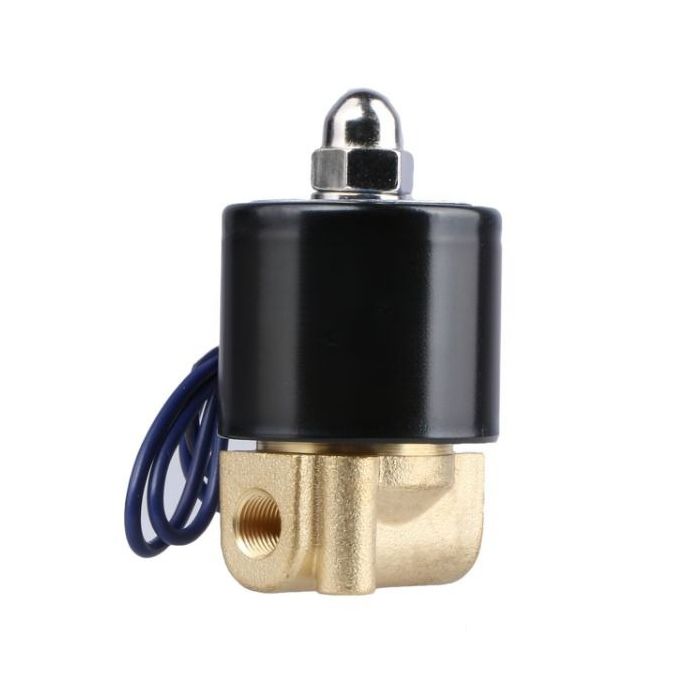

Electric Solenoid Valve

An electric solenoid valve with a normally closed (N/C) design made of durable brass. It features two-way inlet and outlet ports with one-quarter inch (1/8") female threaded (NPT) connections and heat and oil resistant NBR seals. Suitable for hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.

The solenoid valves are rated IP65 for water resistance, but it is recommended to enclose them in protective housing if installed permanently outdoors. Not suitable for underwater use.

Customers choose this general purpose valve for do-it-yourself projects, moderate temperature applications, water exchange for aquariums, air horns, or bleeding moisture from air tanks.

Specifications

  • Pipe Size: 1/8"
  • Flow Aperture: 2.5 mm
  • Body Material: Brass
  • Gasket / Diaphragm / Seal: NBR
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 12V ± 10%
  • Power rating: 14 W
  • Suitable Media: Air, water, diesel oil, kerosene, etc.
  • Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
  • Flow capacity: 0.23 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 0.23 Cv
  • Temperature, Minimum: 23 degrees Fahrenheit (-5 degrees Celsius)
  • Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). The solenoid valve can reach temperatures of about 176°F (80℃) under normal operating conditions. Continuous operation for more than 8 hours may cause the coil to burn.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

```
