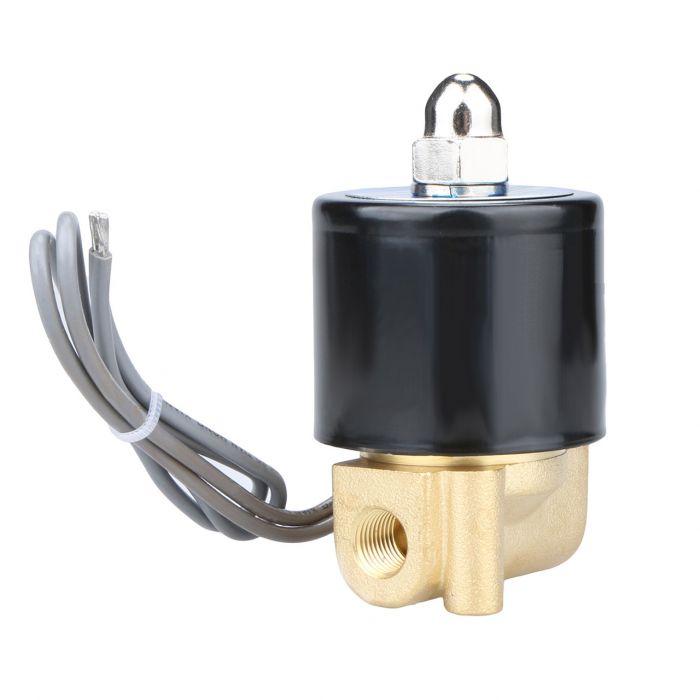

Electric Solenoid Valve - 1/8" 24V DC Brass Solenoid Valve Normally Closed with VITON SEAL
An electric solenoid valve with normally closed (N/C) operation is crafted with a premium brass body and 1/8" female threaded (NPT) connections. It features a heat and oil resistant Viton gasket, making it suitable for various applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
These solenoid valves are rated IP65, ensuring resistance to water spray. For outdoor installations, it is advisable to provide protective enclosures, as these valves are not designed for underwater use.
The valve is favored by customers for its versatility in do-it-yourself projects, moderate temperature environments, handling harsh chemicals, flow control in irrigation and reverse osmosis systems, and regulating propane gas flow.
Specifications
- Pipe Size: 1/8"
- Flow Aperture: 2.5 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 24V ± 10%
- Power rating: 14 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range:
- Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 0.23 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 0.23 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: The solenoid valve is not designed for continuous operation (not a 100% duty cycle). Under normal use, the coil can reach temperatures up to 176°F (80°C), complying with national standards. Continuously energizing the coil for over 8 hours can cause it to burn.
WARNING: This product contains chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
```
