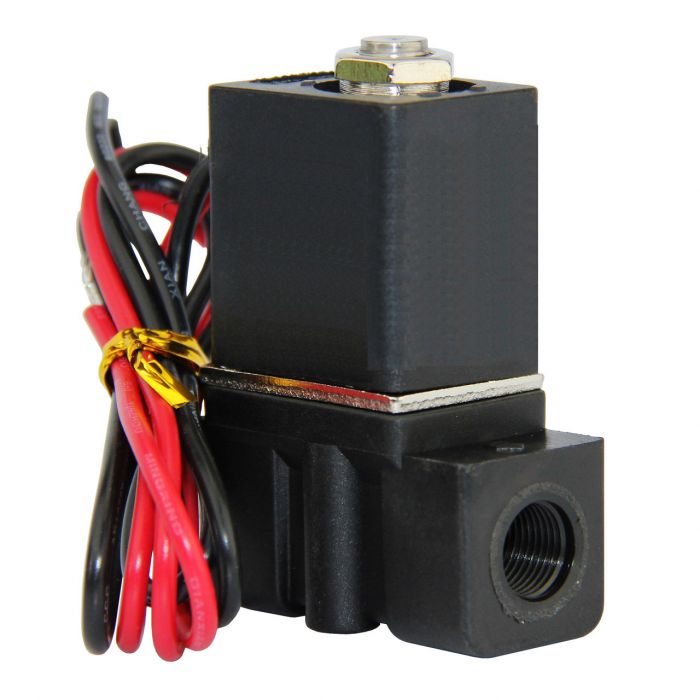

Electric Solenoid Valve - 1/8" 12V DC Plastic(Nylon) Body Normally Closed with NBR SEAL
This electric solenoid valve features a nylon engineering plastic body with 1/8" female threaded connections and nitrile rubber seals. It is suitable for a variety of applications including hot or cold water, natural gas, air, low viscosity fluids, and oils.
The valve has an IP65 rating, making it resistant to water spray, but it is recommended to enclose it in protective housing if installed permanently outdoors and not suitable for underwater use. Customers commonly choose this valve for DIY projects, moderate temperature applications, water exchange in aquariums, air horn use, or bleeding moisture from air tanks.
Specifications:
- Pipe Size: 1/8"
- Flow Aperture: 2.5 mm
- Body Material: Nylon engineering plastic
- Gasket / Diaphragm / Seal: Nitrile rubber (NBR)
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power Rating: 4.8 W
- Suitable Media: Air, water, diesel oil, kerosene, etc.
- Operational Pressure Range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow Capacity: 0.23 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 0.23 Cv
- Temperature, Minimum: 23°F (-5°C)
- Temperature Maximum: 176°F (80°C)
Important notes:
This solenoid valve is not designed for continuous operation as it is not a 100% duty cycle. When energized, the valve may get hot, with the coil reaching a maximum temperature of about 176°F (80°C). It complies with national standards and may burn if energized continuously for over 8 hours.
WARNING: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
