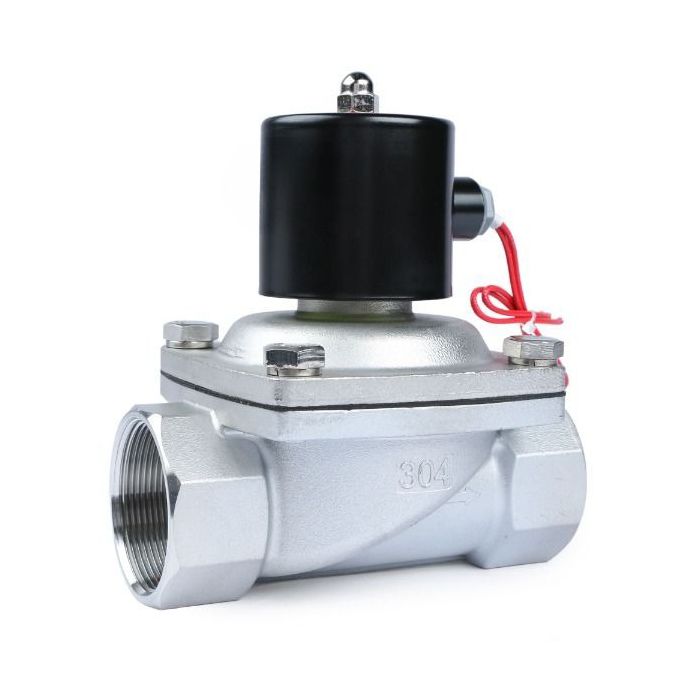

Electric Solenoid Valve - 2 Inch Stainless Steel, 12V DC, Normally Closed, With Viton Seal
Electric Solenoid Valve
A high-quality electric solenoid valve with normally closed (N/C) functionality. Constructed with a stainless steel body, this valve features two-way inlet and outlet ports with 2" female threaded (NPT) connections. It is equipped with a durable, heat and oil resistant Viton gasket.
Suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel. The valves have a rating of IP65, making them capable of withstanding water spray.
For outdoor installations, it is recommended to enclose the valves in protective housing. Not suitable for underwater use.
Customers choose this general purpose valve for various purposes including DIY projects, moderate temperature applications, harsh chemical environments, irrigation systems, reverse osmosis systems, and propane gas flow control.
Specifications:
- Pipe Size: 2"
- Flow Aperture: 50 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 21.5 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 48 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 48 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
- OVERHEATING WARNING: Not designed for continuous operation. Coil may reach a maximum temperature of about 176°F (80°C). If energized continuously for more than 8 hours, the coil may burn.
Instruction Manual included.
