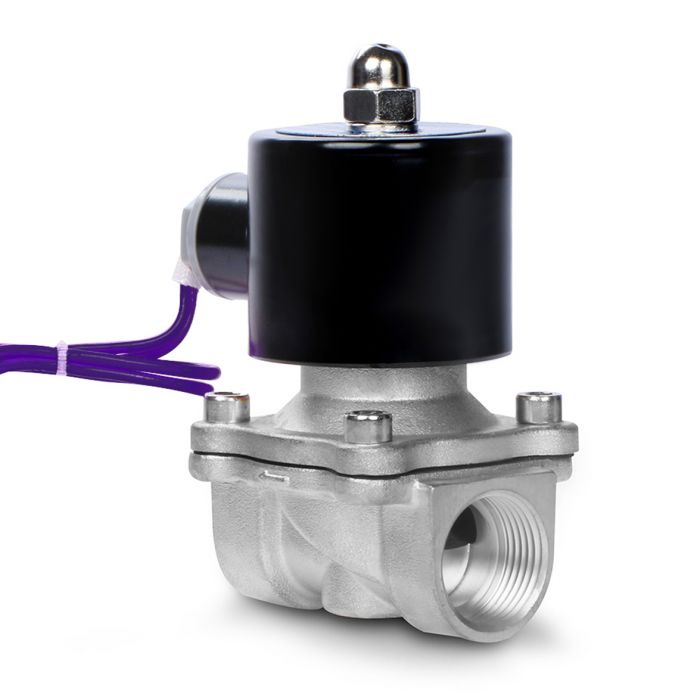

Electric Solenoid Valve- 3/4" 12V DC Stainless Steel Body Normally Closed, VITON SEAL

$45.99
In stock
SKU
JFSV00073

This high-quality electric solenoid valve features a stainless steel body, three-quarter inch female threaded connections, and a Viton gasket. It is suitable for a variety of fluids such as hot or cold water, gas, air, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. The valve has an IP65 rating, making it resistant to water spray. It is recommended to enclose the valve if permanently installed outdoors and should not be used underwater. Customers choose this valve for projects like irrigation systems, reverse osmosis systems, or controlling propane gas flow.

  • Pipe Size: 3/4"
  • Flow Aperture: 20 mm
  • Body Material: Stainless Steel
  • Gasket / Diaphragm / Seal: VITON
  • Operation Type: Semi-direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 12V ± 10%
  • Power rating: 20 W
  • Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
  • Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
  • Flow capacity: 7.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
  • Flow value: 7.6 Cv
  • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)

OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). The solenoid valve will get hot under normal conditions, with the coil reaching a maximum temperature of about 176°F (80℃). Continuous energization for more than 8 hours may cause the coil to burn, which complies with the national standard: JB/T7352-2010.

```
