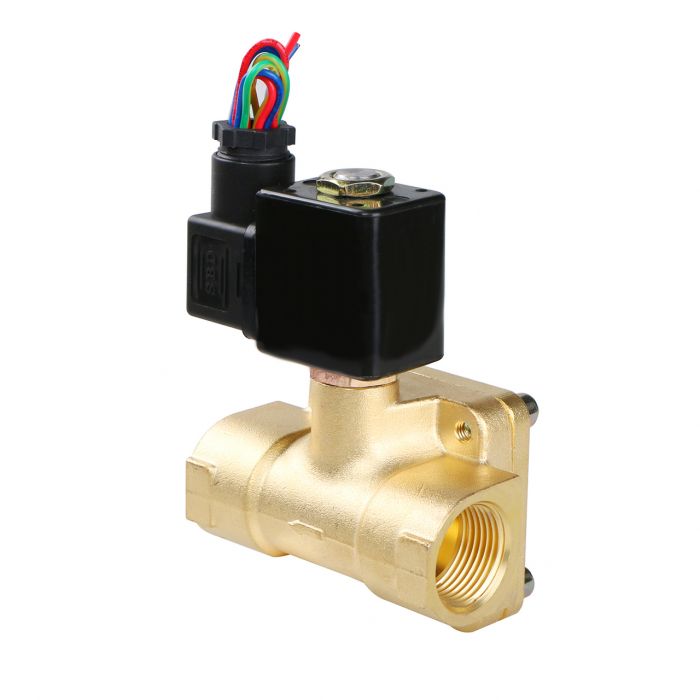

Electric Solenoid Valve- 3/4" 12V DC Brass Body Normally Closed, Pilot Type, VITON SEAL
These normally closed (N/C) electric high pressure solenoid valves are constructed with a durable brass body, two-way inlet and outlet ports with three-quarter inch (3/4") female threaded (NPT) connections, and heat and oil resistant Viton gasket. Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel. The solenoid valves have a rating of IP65, which means they can withstand spray from water. However, if permanently installed outdoors, it is recommended that you enclose the valves in some protective housing. Not for use underwater. Customers choose this general-purpose valve for do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis systems, or to control the flow of propane gas.
Specifications
- Pipe Size: 3/4"
- Flow Aperture: 20 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Pilot
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power Rating: 12 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational Pressure Range: 0.1-16 Bar (0 to 232 PSI)
- Flow Capacity: 7.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow Value: 7.6 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80℃), which is fully compliant with national standard: JB/T7352-2010. If energized continuously for more than 8 hours, the coil may burn.
