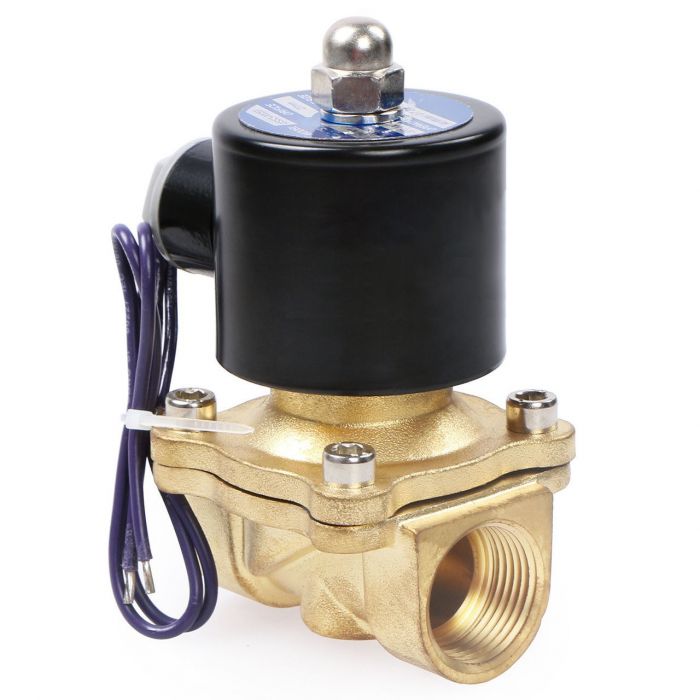

Electric Solenoid Valve - 3/4" 12V DC Brass Body Normally Closed with VITON SEAL
Electric solenoid valve with normally closed (N/C) operation, featuring a durable brass body, two-way inlet and outlet ports with three-quarter inch (3/4") female threaded (NPT) connections, and a heat and oil resistant Viton gasket. Suitable for various applications such as hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. This valve has an IP65 rating, making it resistant to water spray. It is recommended to enclose the valve in protective housing if installed permanently outdoors and should not be used underwater.
Customers select this general purpose valve for DIY projects, moderate temperature uses, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or propane gas flow control. It can also be used for unique applications like actuating a t-shirt cannon, potato cannon, or launching confetti.
- Pipe Size: 3/4"
- Flow Aperture: 20 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 20 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 7.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 7.6 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: This valve is not designed for continuous operation and does not have a 100% duty cycle. During normal operation, the solenoid valve may get hot with a coil reaching temperatures up to about 176°F (80℃) in compliance with national standards. Continuous energization for more than 8 hours may cause the coil to burn.
WARNING: This product may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
```
