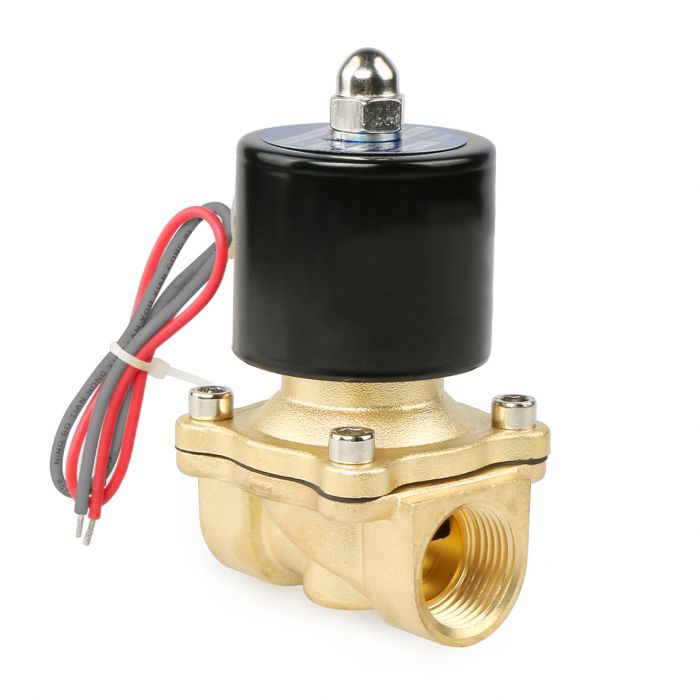

Electric Solenoid Valve- 3/4" 24V AC Brass Body Normally Closed, VITON SEAL
Electric solenoid valve with normally closed (N/C) operation is made of a durable brass body, featuring two-way inlet and outlet ports with three-quarter inch (3/4") female threaded (NPT) connections, along with a heat and oil resistant Viton gasket. This valve is suitable for various applications including hot or cold water, gas, air, low viscosity fluids (< 20 cst), as well as oils and hydrocarbons such as gasoline, kerosene, and diesel fuel.
The solenoid valves have an IP65 rating, indicating their ability to withstand water spray. For outdoor installations, it is recommended to enclose the valves in protective housing to ensure longevity. Please note that these valves are not suitable for underwater use.
Customers often choose this general purpose valve for a variety of purposes such as DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, and regulating propane gas flow.
Specifications
- Pipe Size: 3/4"
- Flow Aperture: 20 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power rating: 21 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 7.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 7.6 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: This solenoid valve is not designed for continuous operation and does not have a 100% duty cycle. During normal operation, the valve may become hot, with the coil reaching a maximum temperature of about 176°F (80℃).
