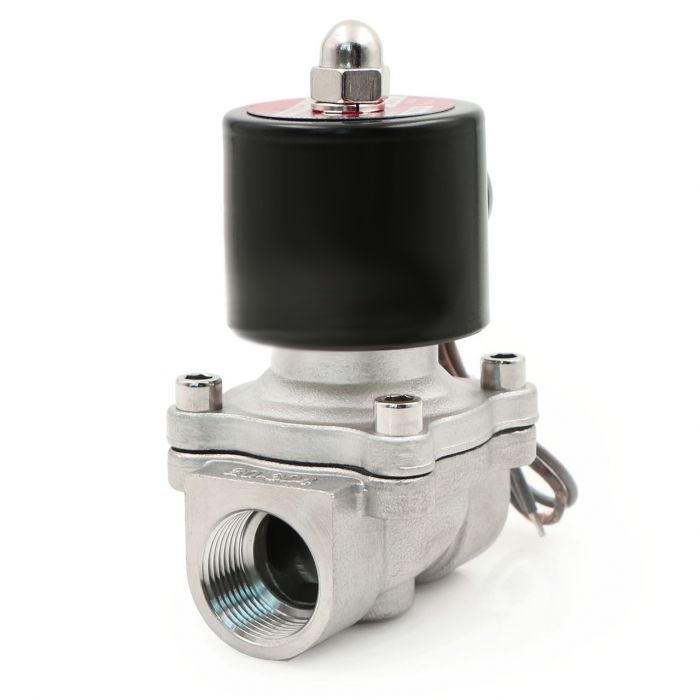

Electric Solenoid Valve- 3/4" 24V DC Stainless Steel Body Normally Closed, VITON SEAL
Our normally closed (N/C) electric solenoid valve features a high-quality stainless steel body, two-way inlet and outlet ports with 3/4" female threaded (NPT) connections, and a Viton gasket that is heat and oil resistant. It is suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.
The solenoid valves are rated IP65, making them resistant to water spray. For outdoor installations, we recommend enclosing the valves in protective housing. Please note that they are not suitable for underwater use.
Customers have chosen this general purpose valve for a range of uses including DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, and propane gas flow control.
Specifications:
- Pipe Size: 3/4"
- Flow Aperture: 20 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 24V ± 10%
- Power rating: 20 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 7.6 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 7.6 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: This solenoid valve is not designed for continuous operation (not a 100% duty cycle). Under normal operating conditions, the valve will become hot. The coil temperature may reach a maximum of about 176°F (80°C), which complies with national standard JB/T7352-2010. Continuous energization for over 8 hours may cause the coil to burn.
