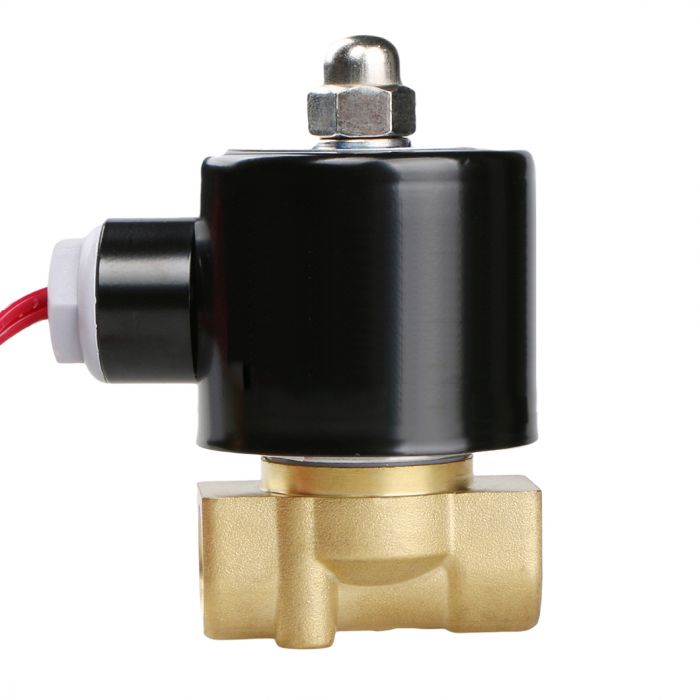

Electric Solenoid Valve - 3/8" 110V AC Brass Body Normally Closed Solenoid Valve with VITON SEAL
$23.99
In stock
SKU
JFSV00056
E html>
Electric Solenoid Valve Product Description
Electric Solenoid Valve Description
An electric solenoid valve with normally closed (N/C) operation is crafted with a sturdy brass body, featuring two-way inlet and outlet ports with three-eighth inch (3/8") female threaded (NPT) connections. It is equipped with a heat and oil resistant Viton gasket, making it suitable for a variety of applications.
Features:
- Compatible with hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, and diesel fuel
- IP65 rated for water spray resistance
- Recommended for use in enclosed outdoor installations, not for underwater use
Common Uses:
- DIY projects
- Moderate temperature applications
- Harsh chemicals
- Flow control for irrigation systems
- Electronic tank selection control
- Water line and motorcycle air shocks
Specifications:
- Pipe Size: 3/8"
- Flow Aperture: 4mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 22 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 0.6 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow value: 0.6 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
WARNING: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
