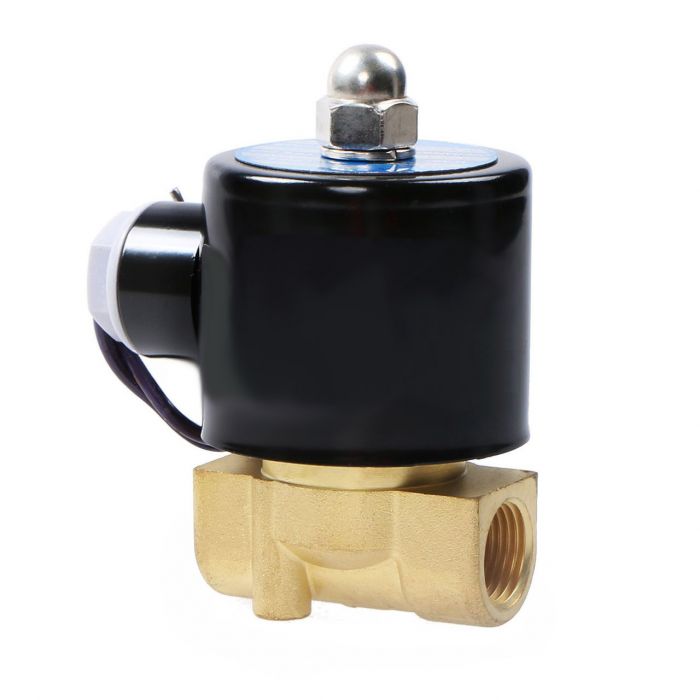

Electric Solenoid Valve- 3/8" 12V DC Brass Body Normally Closed with VITON SEAL
An electric solenoid valve with normally closed (N/C) operation is crafted from a high-quality brass body with 3/8" female threaded connections and a heat and oil resistant Viton gasket. It is suitable for a variety of applications such as hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. This solenoid valve model carries an IP65 rating, making it capable of withstanding water spray. For permanent outdoor installations, it is advisable to enclose the valves in protective housing. However, this valve is not suitable for underwater use. Customers opt for this general purpose valve for DIY projects, moderate temperature environments, handling harsh chemicals, as well as for flow control in irrigation systems, reverse osmosis systems, or managing propane gas flow. The specifications of the 40-pack version are as follows:
- Pipe Size: 3/8"
- Flow Aperture: 4 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 20W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 0.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 0.6 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: This solenoid valve is not designed for continuous operation and does not have a 100% duty cycle. Under normal conditions, while energized, the valve will become hot, with the coil reaching a maximum temperature of about 176°F (80℃), in full compliance with national standard: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.
WARNING: The product may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Instruction Manual and safety guidelines are available with the product.
```
