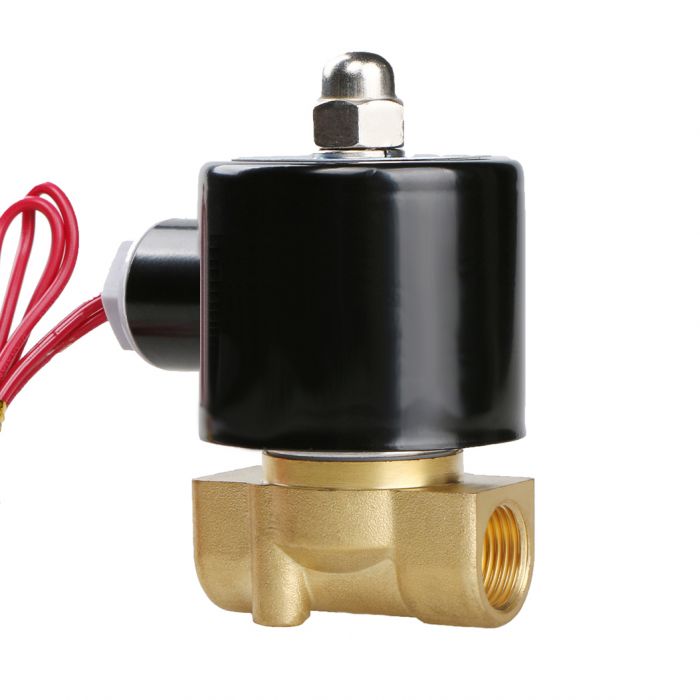

Electric Solenoid Valve- 3/8" 24V AC Brass Body Normally Closed, VITON SEAL
Our normally closed (N/C) electric solenoid valve is crafted with a sturdy brass body, featuring two-way inlet and outlet ports with 3/8" female threaded (NPT) connections and a Viton gasket that is resistant to heat and oil. This versatile valve is suitable for a range of applications including hot or cold water, gas, air, low viscosity fluids, and various oils and hydrocarbons such as gasoline, kerosene, and diesel fuel.
The solenoid valves are IP65 rated, making them able to withstand water spray. For outdoor installations, we recommend enclosing the valves in protective housing. Please note that these valves are not suitable for underwater use.
Customers appreciate this general-purpose valve for its suitability in DIY projects, moderate temperature environments, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, electronic tank selection, water lines, and motorcycle air shocks.
Specifications:
- Pipe Size: 3/8"
- Flow Aperture: 4 mm
- Body Material: Brass
- Gasket/Diaphragm/Seal: Viton
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power Rating: 22 VA
- Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
- Operational Pressure Range: Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow Capacity: 0.6 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 0.6 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
WARNING:
This solenoid valve is not designed for continuous operation and not suitable for a 100% duty cycle. During normal operation, the valve may get hot, with the coil reaching a maximum temperature of about 176°F (80℃). If energized continuously for more than 8 hours, there is a risk of coil burnout.
