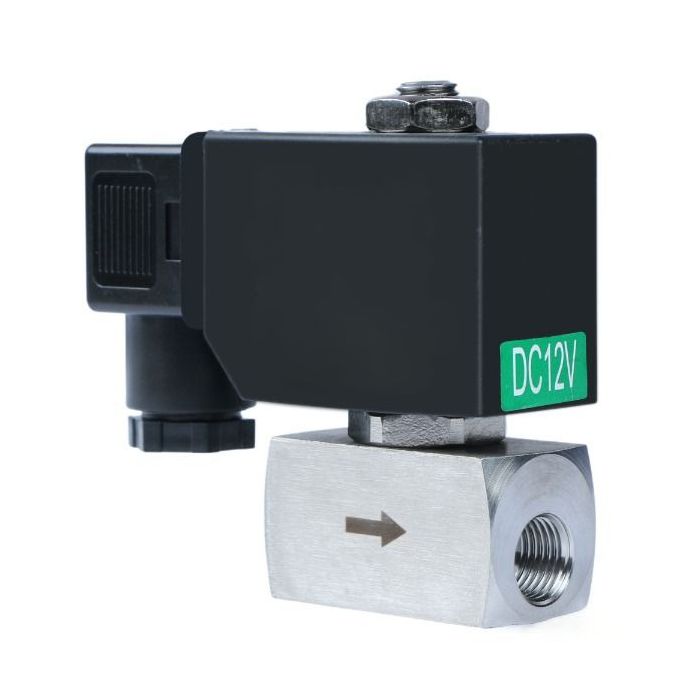

High Pressure Solenoid Valve - 1/4" Stainless Steel 60 bar, 12V DC High-Pressure High-Temperature Resistance Solenoid Valve, 356℉

High Pressure Solenoid Valve features a high-pressure, high temperature resistant design that was built to withstand a high pressure and a high temperature without being damaged. The valve body is made by high-quality stainless steel and the material of seal is PTFE, featuring a strong inner structure, this high-pressure solenoid valve will resist high pressure transfer of liquids, gas, oil or air, up to 60 bar, which is several times more than common solenoid valves. Not only can work for any high-pressure system but this valve also has excellent temperature resistance for up to 356 degrees F. Versatile and super responsive, it can be used for a wide variety of HVAC, industrial, household or commercial applications.

Specifications:

• Model: HSV05
• Size: 1/4 inches
• Material: Stainless Steel
• Working Voltage: 12V DC
• Output Power: 8.5 W
• N.C./N.O.: Normally Closed
• Working Pressure: < 6.0 MPa
• Medium Temperature: -30-180°C (-22-356℉)
• Orifice: 9 mm
• Flow Rate: 1.7 Cv
• Seal: PTFE
• Operation Type: Pilot-operated
• Open/Close Time: < 1 s
