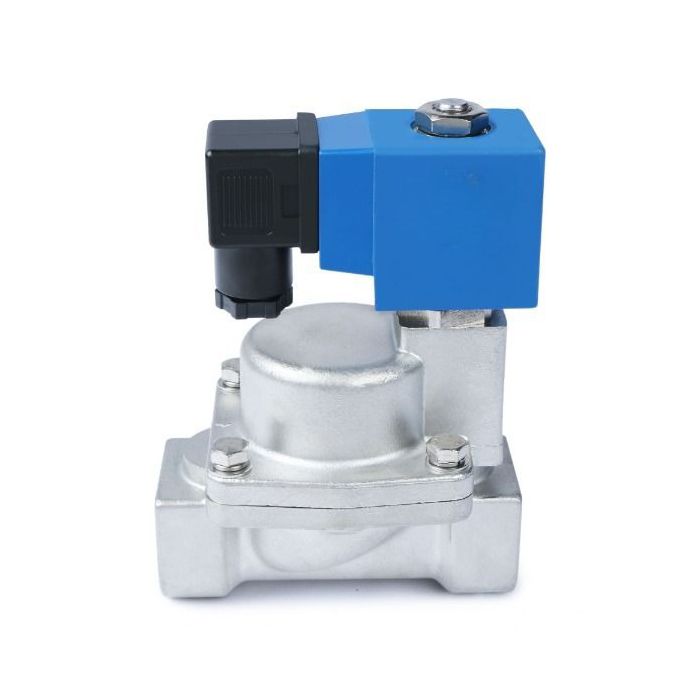

High Pressure Solenoid Valve - 1" Stainless Steel 100 bar, 12V DC High-Pressure High-Temperature Resistance Solenoid Valve, 248℉

High Pressure Solenoid Valve features a high-pressure, high temperature resistant design that can withstand harsh conditions without being damaged. The valve body is constructed with high-quality stainless steel and the seal material is PTFE, ensuring a durable inner structure to resist high pressure for transferring liquids, gas, oil, or air at pressures up to 100 bar - several times more than typical solenoid valves. This versatile valve also offers excellent temperature resistance up to 248 degrees F, making it suitable for various applications in HVAC, industrial, household, and commercial settings.

• Model: HSV08
• Size: 1 inch
• Material: Stainless Steel
• Working Voltage: 12V DC
• Output Power: 8.5 W
• N.C./N.O.: Normally Closed
• Working Pressure: < 10.0 MPa
• Medium Temperature: -30-180°C (-22-356℉)
• Orifice: 25 mm
• Flow Rate: 12 Cv
• Seal: PTFE
• Operation Type: Pilot-operated
• Open/Close Time: < 1 s

Instruction Manual
