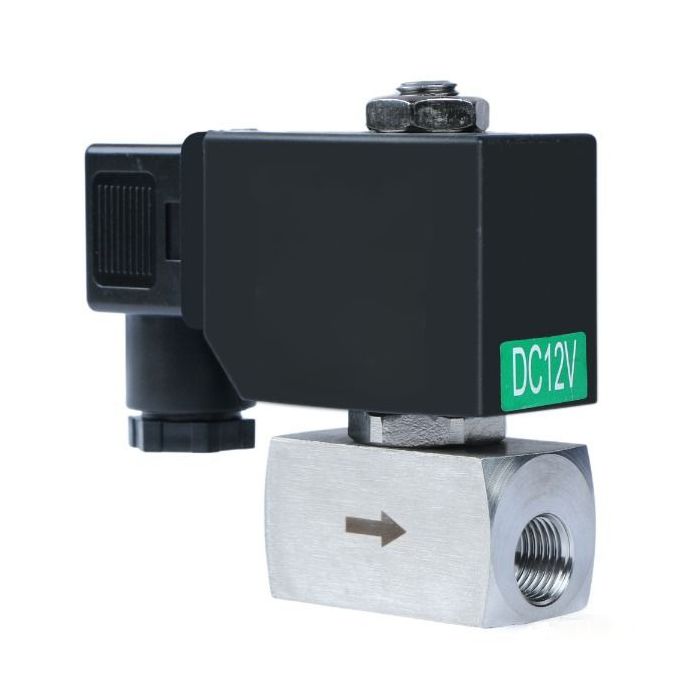

High Pressure Solenoid Valve

This high-pressure solenoid valve features a design that is resistant to high pressure and high temperatures, making it durable and reliable for various applications. Made from high-quality stainless steel, with a PTFE seal, it can withstand pressure up to 60 bar, making it suitable for handling liquids, gas, oil, or air.

It can operate in temperatures up to 356 degrees F and is versatile for use in HVAC, industrial, household, or commercial settings. The valve is designed for quick and precise responses, ideal for a wide range of applications.

Specifications:

• Model: HSV09
• Size: 1/4 inches
• Material: Stainless Steel
• Working Voltage: 24V DC
• Output Power: 8.5 W
• N.C./N.O.: Normally Closed
• Working Pressure: < 6.0 MPa
• Medium Temperature: -30-180°C (-22-356℉)
• Orifice: 9 mm
• Flow Rate: 1.7 Cv
• Seal: PTFE
• Operation Type: Pilot-operated
• Open/Close Time: < 1 s
