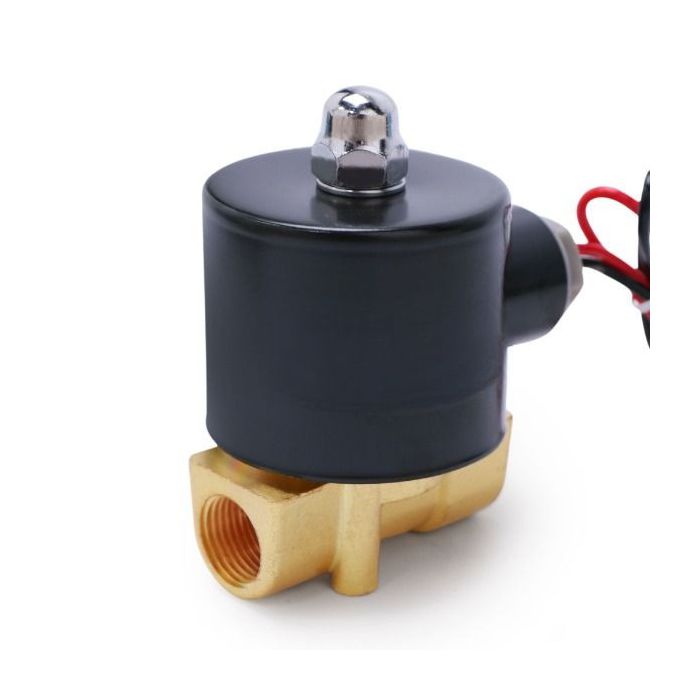

Zinc-Alloy 3/8” Solenoid Valve with 12V DC and NBR Seal

Explore the cutting-edge technology utilized in creating high-quality valves at competitive prices. The Zinc-alloy Solenoid Valves from our ZSV Series are designed to excel in various applications.

Featuring a durable zinc alloy valve body, our solenoid valves provide sufficient pressure resistance while being a cost-effective alternative to brass or stainless steel options.

Specifications:

• Pipe Size: 3/8"
• Flow Aperture: 4 mm
• Body Material: Zinc Alloy
• Gasket / Diaphragm / Seal: NBR
• Operation Type: Direct Lift Valve
• Operation Mode: Normally Closed
• Voltage: DC 12V
• Power Rating: 20 W
• Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
• Operational Pressure Range: Air/Water: 0-8 Bar (0 to 116 PSI); Oil: 0-5 Bar (0 to 72 PSI)
• Flow Value: 0.6 Cv
• Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
• Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

OVERHEATING WARNING: Please note that these solenoid valves are not intended for continuous operation (not a 100% duty cycle). During normal use, the coil may become hot, reaching a maximum temperature of about 176°F (80℃), which complies with national standards (JB/T7352-2010). Continuous energization for more than 8 hours may lead to coil burnout.
