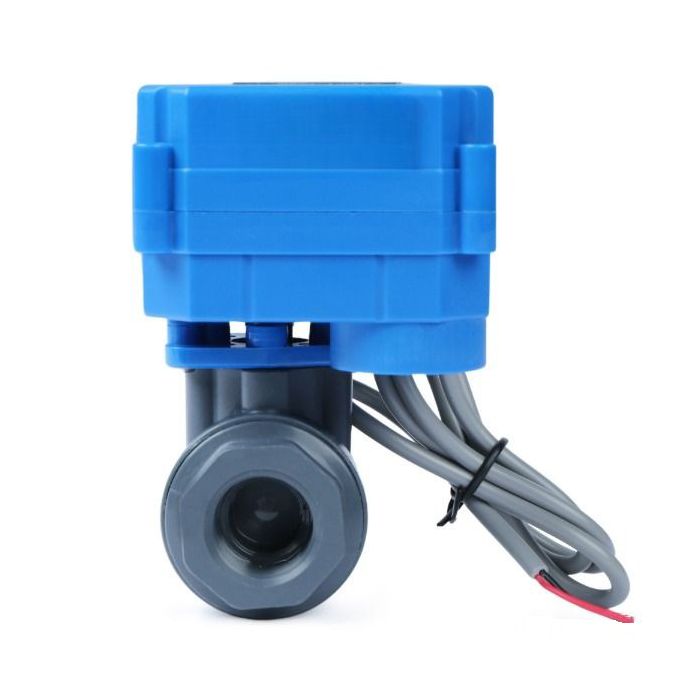

1/2" Motorized UPVC Ball Valve - 9-36V AC/DC Plastic Electric Valve with Full Port, 2-Wire Auto Return, Normally Closed
Motorized Ball Valve with UPVC Body
The motorized ball valve features a durable UPVC valve body, offering exceptional longevity and durability compared to PVC alternatives. Its lightweight design, thanks to the UPVC construction, makes installation on various pipelines easier compared to valves with brass or stainless steel bodies. Additionally, the lead-free body of the valve makes it safe for use in drinking water pipelines, providing a secure solution for such applications.
The 2-wire auto return model is perfect for situations where the valve needs to close during a power loss. This model is simple to operate - it can be energized to open and will consume minimal energy once fully open. To close the valve, just disconnect the power supply. The straightforward design allows for easy operation with a simple on/off switch. When the switch is on, the valve will stay open, and when it's off, it will automatically close.
Specifications:
- Size: 1/2 inches
- Material: UPVC
- Thread Type: NPT
- N.C./N.O.: Normally Closed
- Input Voltage: 9-36V AC/DC
- Wiring Type: 2 Wire Auto Return
- Max Pressure: 1.0 Mpa
- Ambient Temperature: 33℉-122℉
- Medium Temperature: 33℉-131℉
