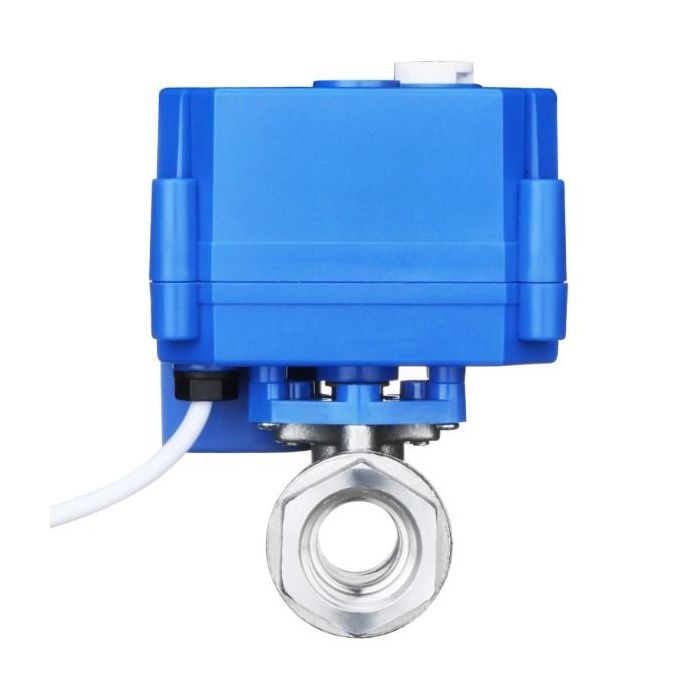

Stainless Steel Motorized Ball Valve with Manual Control, 1/2" Size, Full Port, 9-24V AC/DC and 3-Wire Setup
Versatile Motorized Electrical Ball Valve
Operate this motorized electrical ball valve on a wide voltage range of 9V-24V AC/DC, designed to be adaptable to various power sources for reliable performance in diverse settings.
Efficient Operation
This valve consumes just 2W of power with a maximum torque of 2.5 N m, offering a balance of power efficiency and performance for smooth and reliable operation, even in demanding conditions.
Quick Response Time
With an open/close time of less than 8 seconds, experience rapid response and efficient control in your fluid systems, particularly beneficial for applications requiring quick adjustments.
Robust and Durable
With an IP65 rating, this valve is dust-tight and protected against water jets, ensuring durability and reliability in various environmental conditions. It can withstand a maximum pressure of 1.0 MPa, suitable for high-pressure applications.
Wide Temperature Range
Capable of handling flow medium temperatures from 0°C to 90°C and ambient temperatures from -5°C to 40°C, making it versatile for use in different environments and applications ranging from heating systems to industrial processes.
Additional Features
The valve includes a position indicator on the top of the actuator for easy viewing of the on/off state. It also comes with a manual function for manual adjustments when needed, even in power failure situations.
Wiring Instructions
In direct current (DC) situations, connect the red wire to the positive terminal and the blue wire to the negative terminal. The valve operation depends on parallel or disconnection of the yellow wire with the red wire. In alternating current (AC) situations, polarity is not a concern.
Specifications
- Valve Material: Stainless Steel
- Ball Seal: PTFE
- Close/Open Time: <8 Seconds
- Working Voltage: 9~24V AC/DC
- Max Power: 2 W
- Max Torque: 2.5 N m
- Max Pressure: 1.0 MPa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000-100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
Instruction Manual SKUs
JFMSV00201, JFMSV00202, JFMSV00203, JFMSV00204, JFMSV00205, JFMSV00206, JFMSV00207
Material and Size Options
Material: SS304, Brass
Size(NPT): 1/4, 1/2, 3/4, 1, 1/2, 3/4, 1
Bore Type: Full
Standard Wiring: 3-wire 1-way Positive Break
