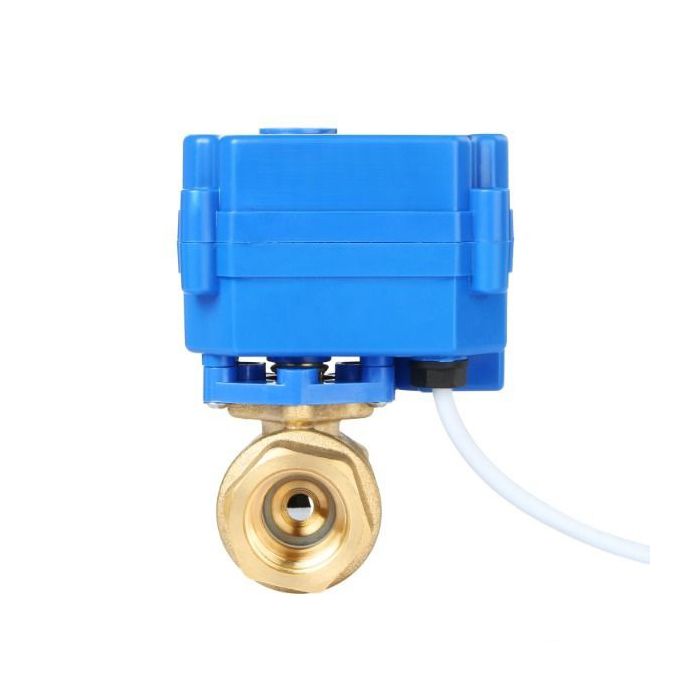

Motorized Ball Valve - 1/2" Brass Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return, Normally Open

$15.10
In stock
SKU
JFMSV00074

Motorized Brass Ball Valve - High Quality New Design

Motorized ball valves are essential components in various applications. This specific model is designed to open and close within a quick 3-5 seconds, ensuring efficient operation while consuming minimal energy. Unlike many solenoid valves that remain energized continuously in a new position, motorized ball valves only require energy during the transition from open to close and vice versa.

The 2-wire auto return feature of this valve is particularly useful in situations where maintaining the valve's position during power loss is crucial. By energizing the valve to close and leaving it connected, minimal energy is utilized once the valve is fully closed. Opening the valve is as simple as shutting off power, making it incredibly convenient to operate with a basic on-off switch.

Specifications:

  • Valve Material: Brass
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 5 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
