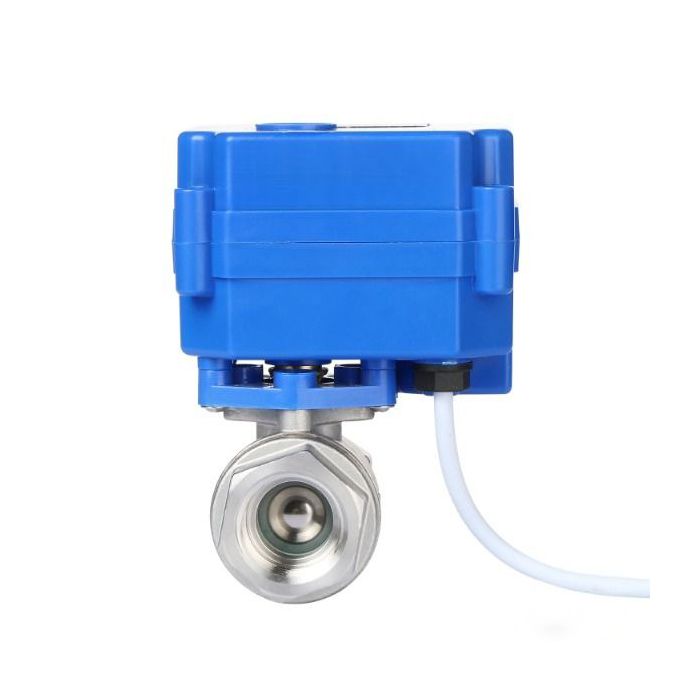

Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return, Normally Open

$17.79
In stock
SKU
JFMSV00071

Motorized ball valves play a crucial role in various applications. This particular model is designed to open and close in a quick 3-5 seconds, consuming minimal energy while staying securely in place. This sets motorized ball valves apart from many solenoid valves, which typically require continuous energy when in a new position. In contrast, motorized ball valves only use energy during the transition from open to close, or vice versa.

The 2 wire auto return feature of this model is especially useful in situations where the valve needs to open in the event of a power outage. By energizing the valve to close and leaving it connected, very little energy is consumed once fully closed. To open the valve, simply cut off the power supply. This valve is user-friendly as it can be operated with a basic on/off switch. When switched on, the valve stays closed; when turned off (or in case of power loss), the valve automatically opens.

Specifications:
U.S. Solid Model: USS-MSV00071 (New Type with Indicator:JFMBV00004)
Valve Material : SS304
Ball Seal: PTFE
Operating Time : 3-5 Seconds
Working Voltage : 9-24V AC/DC
Max Power : 5 W
Max Torque : 2 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 90°C
Ambient Temperature Range : -10°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type : Full
Thread Type : NPT
Wiring Type : 2 Wire Auto Return
