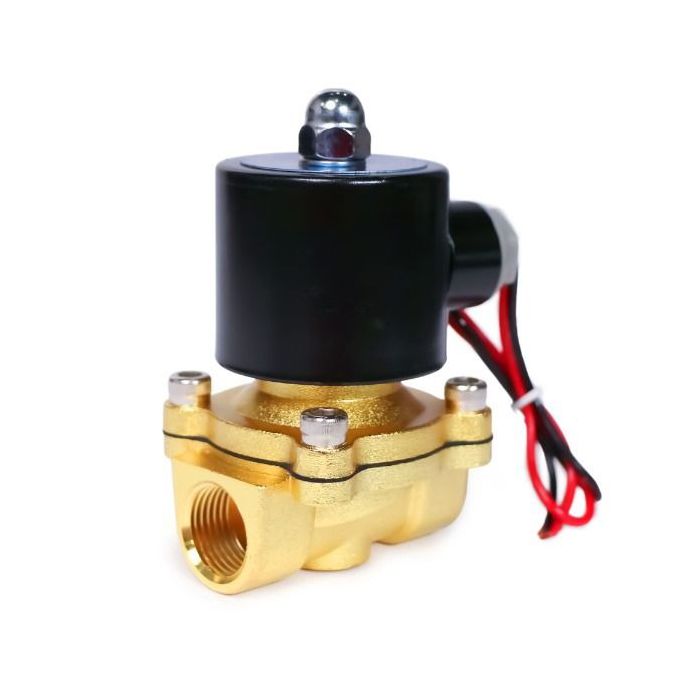

1/2" Zinc-Alloy Solenoid Valve, 24V DC with NBR Seal

Our cutting-edge technology allows us to produce high-quality solenoid valves at a competitive price point. The Zinc-alloy Solenoid Valves from our ZSV Series are designed to meet your needs for various applications.

• Pipe Size: 1/2"
• Flow Aperture: 16 mm
• Body Material: Zinc Alloy
• Gasket / Diaphragm / Seal: NBRO
• Operation Type: Direct Lift Valve
• Operation Mode: Normally Closed
• Voltage: DC 24V
• Power rating: 20 W
• Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
• Operational pressure range:
  • Air/Water: 0-8 Bar (0 to 116 PSI)
  • Oil: 0-5 Bar (0 to 72 PSI)
• Flow value: 4.8 Cv
• Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
• Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

OVERHEATING WARNING: Our solenoid valves are not intended for continuous operation (not a 100% duty cycle). During normal use, when energized, the solenoid valve may become hot. The coil temperature can reach about 176°F (80℃), which meets national standard: JB/T7352-2010. Continuous energization for over 8 hours may cause the coil to burn.
