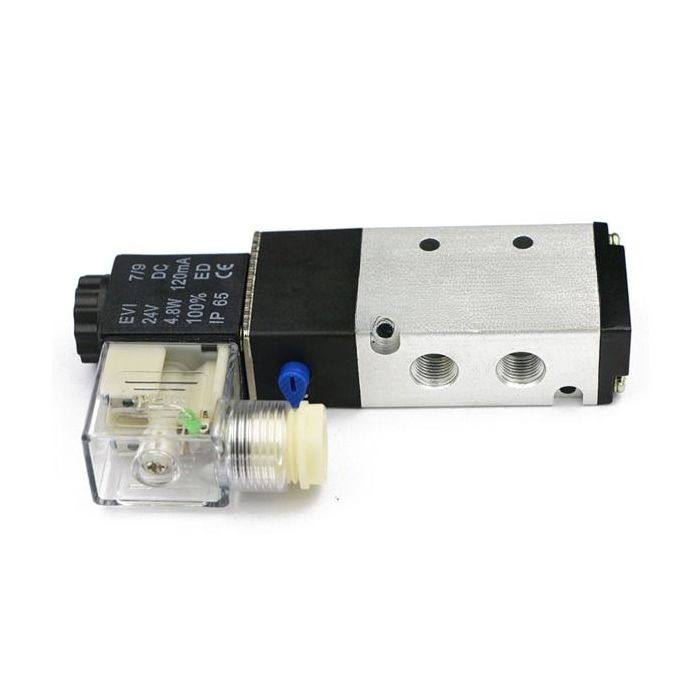

1/8" 5 Way 2 Position Pneumatic Electric Solenoid Valve DC 24 V

$16.99
In stock
SKU
JFPSV00006

This 1/8" 5 way 2 Position Pneumatic Electric Solenoid Valve is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems. This valve allows pneumatic control of position, flow, pressure and temperature. This is a 5/2 valve which means it has 5 ports; 2 exhaust ports through which air is regulated as it flows out, 2 power ports that power the system, 1 supply port for the inlet of air pressure, and 2 flow positions. This valve is made with an aluminum alloy and has a 1/8”aperture. Pneumatic types of valves can be found in a wide array of industries. They are used in Pneumatic Artificial Muscles (PAM) for robotics and automation. Manufacturing companies that use conveyors belts uses pneumatic valves in their conveyor belt systems. Pneumatic valves offer reliability, low power consuming, and have a long life. They are have prewired connections that makes installation, maintenance, and control simple.

Specifications

  • Valve Type: 2 Position 5 Way
  • Thread Type: NPT
  • Operation/ Property: Normally Closed
  • Material: Aluminum Alloy
  • Size: 1/8"
  • Voltage: DC 24 V
  • Applicable Media: Filtered Air
  • Power Rating (W): 4.8
  • Aperture (mm): 12
  • Flow Value (Cv): 0.67
  • Insulation & Protection: Class F; IP 65
  • Working Pressure: 0 ~ 0.8 Mpa
  • Direct Operated/ Pilot Operated: Direct Acting
  • Operation Temperature: 1 - 70℃
  • Voltage: ±10%
