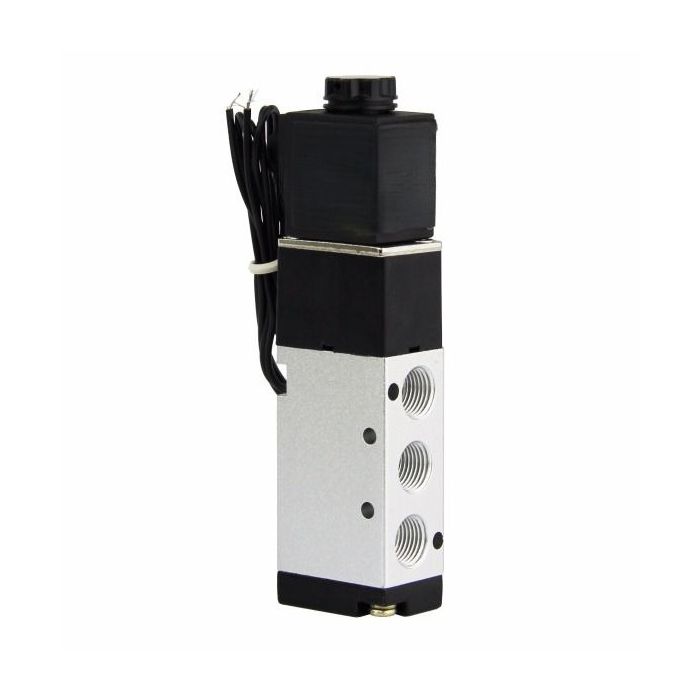

1/8" NPT 5 Way 2 Position Pneumatic Electric Solenoid Valve DC 12 V
The 1/8" NPT 5 Way 2 Position Pneumatic Aluminum Electric Solenoid Valve is a versatile switch designed to direct air flow to various pneumatic devices, such as actuators. It serves as the crucial link between electronic controllers and pneumatic systems, enabling precise control over position, flow, pressure, and temperature. Crafted from durable aluminum alloy, this valve features a 5/2 configuration with 5 ports: 2 exhaust ports for regulated air release, 2 power ports to drive the system, and 1 supply port for air inlet.
Pneumatic valves play vital roles in a variety of industries, from robotics and automation, where they power Pneumatic Artificial Muscles (PAM), to manufacturing processes that rely on conveyor belt systems. They are also indispensable in food and beverage production for tasks like dispensing, processing, and preservation. Known for their efficiency, U.S. Solid’s pneumatic valves boast reliability, energy efficiency, and longevity, making them a preferred choice for diverse applications.
Specifications:
- Valve Type: 2 Position 5 Way
- Thread Type: NPT
- Operation/Property: Normally Closed
- Material: Aluminum Alloy
- Size: 1/8"
- Voltage: DC 12 V
- Applicable Media: Filtered Air
- Power Rating (W): 2.5
- Effective Area (mm): 12
- Flow Value (Cv): 0.67
- Insulation & Protection: Class F; IP 65
- Working Pressure: 0.15 ~ 0.8 Mpa
- Max. Pressure Resistance: 1.2 Mpa
- Direct Operated/Pilot Operated: Pilot Operated
- Operation Temperature: -5°C ~ 50°C
- Voltage: ±10%
- Cable Length: 42cm/16.5"
- Wiring Form: Direct Lead Wire or Connector
