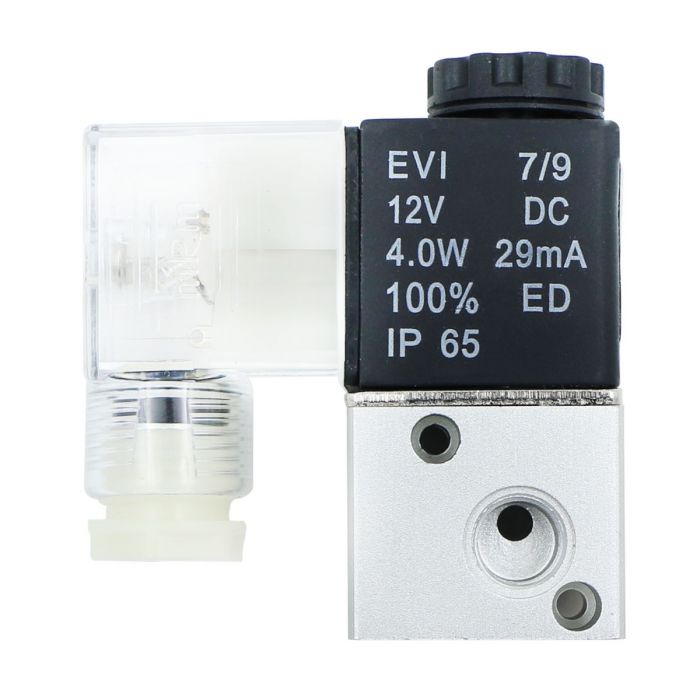

Pneumatic Electric Solenoid Valve with 3 Way 2 Position Functionality (DC 12 V, 1/8")
Pneumatic valves are utilized in a variety of industries, including food and beverage manufacturing where they play a key role in processing, dispensing, and preserving products. These valves are favored in manufacturing machinery for their automation capabilities. The 1/8" 3 way 2 Position Pneumatic Electric Solenoid Valve serves as a crucial component for directing air to pneumatic devices, typically actuators, allowing for precise control with minimal input signals. It serves as a vital link between electronic controllers and pneumatic systems, facilitating control over position, flow, pressure, and temperature. This 3/2 valve configuration features three port connections and two flow positions, ensuring efficient air flow management based on energization status. Constructed from durable aluminum alloy and featuring a 1/8" aperture, this valve guarantees reliability, energy efficiency, and longevity.
Key Specifications:
- Valve Type: 2 Position 3 Way
- Thread Type: NPT
- Operation/ Property: Normally Closed
- Material: Aluminum Alloy
- Size: 1/8"
- Voltage: DC 12 V
- Applicable Media: Filtered Air
- Power Rating (W): 4
- Aperture (mm): 1.2
- Flow Value (Cv): 0.23
- Insulation & Protection: Class F; IP 65
- Working Pressure: 0.0 ~ 0.8 Mpa
- Max. Pressure Resistance: 1.2 Mpa
- Direct Operated/ Pilot Operated: Direct Acting
- Operation Temperature: -5°C - 60°C
- Voltage: ±10%
