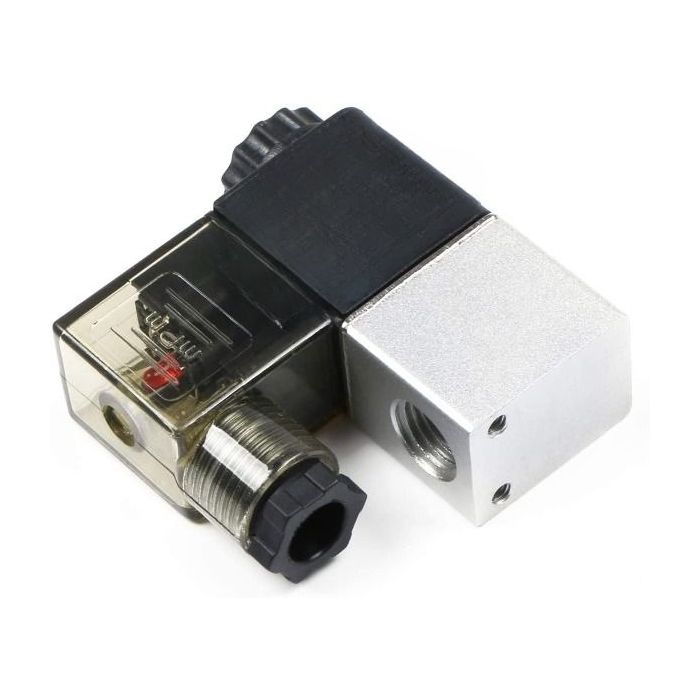

1/8" NPT 2 Way 2 Position Pneumatic Electric Solenoid Valve with AC 110V Power
The 1/8" NPT 2 way 2 Position Pneumatic Electric Solenoid Valve is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems. This valve allows pneumatic control of position, flow, pressure and temperature. This valve is a 2/2 valve which means the valve has two port connections and two flow positions. Put simply, this valve either blocks or opens air flow. This valve is made with an aluminum alloy and has an aperture of 1/8” NPT. Pneumatic types of valves can be found in a wide range of industries. They are used in Pneumatic Artificial Muscles (PAM) for robotics and automation. Manufacturing companies that use conveyors belts uses pneumatic valves in their conveyor belt systems. Food and beverage manufacturers use them to make, dispense or preserve food and beverage products. These pneumatic valves offer reliability, low power consuming, and have a long life.
Specifications:
- Valve Type: 2 Position 2 Way
- Operation/ Property: Normally Closed
- Size: 1/8" NPT
- Voltage: AC 110 V
- Applicable Media: Filtered Air
- Aperture (mm): 1.2
- Flow Value (Cv): 0.23
- Working Pressure: 0 ~ 0.8 Mpa
- Direct Operated/ Pilot Operated: Direct Acting
- Operation Temperature: -5℃ ~ 60℃
