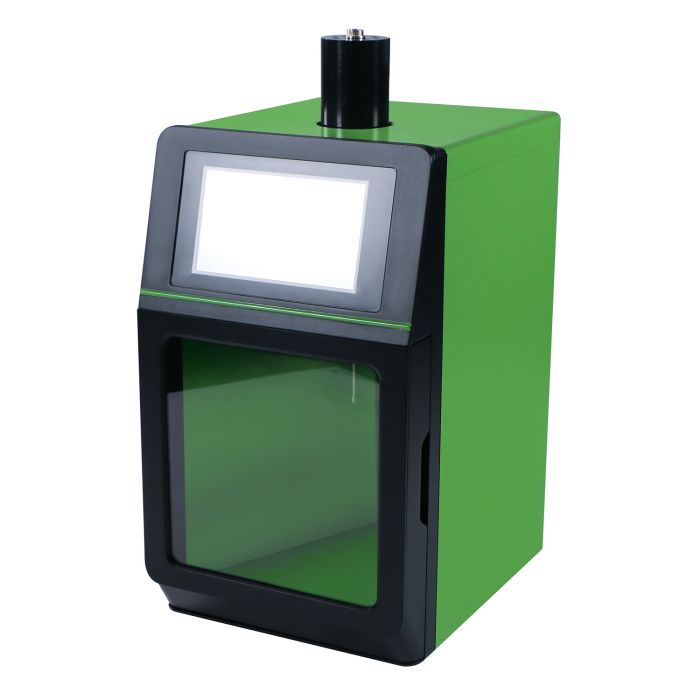

1000W 2-in-1 Integrated Ultrasonic Homogenizer for Cell Disruption and Mixing

Instruction Manual

Features:

• 2-in-1 Space-saving Design: The host and soundproof box are combined, saving space in the lab. The LED light inside aids in clear observation of sample processing.
• Automatic Energy Compensation: Adjusts frequency and output point based on sample fluidity.
• Overloading or Overheating Protection: Equipped with a real-time temperature sensor to prevent overload or overheating of samples.
• Three Working Modes: Continuity, pulse, and work time modes provide versatile operation. Users can store settings for direct operation.

Applications:

• Preparation of composite materials (nano-material dispersion)
• Life sciences (cell disruption and extraction)
• Pharmaceutical (extraction of medicinal herbs and plants)
• Environmental science (extraction of soil organic matter)
• Sewage Treatment (COD degradation)
• Homogeneous blending (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)

Specifications:

• Frequency Range: 20KHz
• Output Power: 1000 W
• Duty Ratio: 0-100%
• Probe Diameter: Φ10 mm
• Sample Processing Volume: 0.1～1200ml
• Additional Amplitude Diameter: Φ10 mm
• Packing Size: 17.2” * 14.6” * 26”
• Gross Weight: 20 lbs
• Power Supply: AC 110V, 60 Hz
